  13. Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 240V AC, DPDT

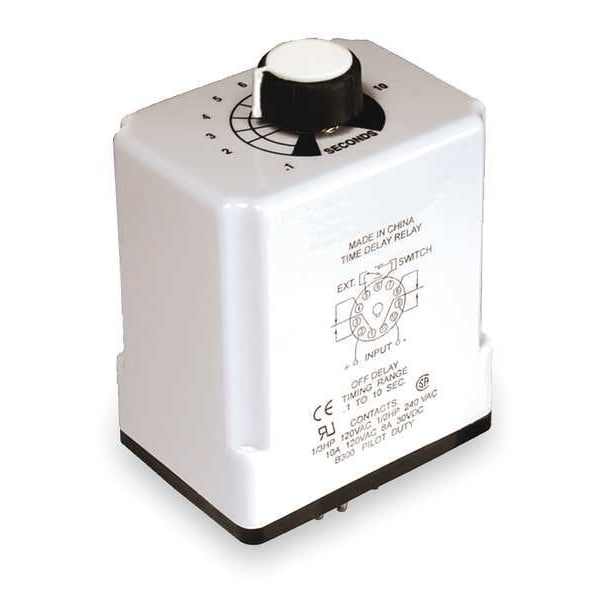

Dayton Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 240V AC, DPDT 1EGC3 - main

CAD Drawings

Download CAD Files

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 240V AC, DPDT

  • Mfr # 1EGC3

  • Zoro # G2539896

CAD Available
product price: $66.29
/ea

Key Features

CAD Drawing
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.1 sec
Maximum Time Setting
10 sec
Base Shape
Octal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1EGC3
Zoro #
G2539896
UPC #
190735137857
Country of Origin
United States

Dimensions

Overall Height - Relay
3.1 in
Body Width
2.4 in
Overall Depth
3.1 in
Body Depth
1.7 in
Body Height
2.9 in

Details

Item
Single Function Time Delay Relay
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.1 sec
Maximum Time Setting
10 sec
Base Shape
Octal
Number of Pins
11
Coil Voltage
240V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Contact Amp Rating (Resistive)
10A
Socket Code
B
Adjustment Method
Potentiometer
Contact Material
Silver Nickel
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Operating Functions
2
Status Indicator
None
Socket
1EGP2, 1EGP4, 6X156
Coil Rating
2VA
Electrical Connection
Socket
Input Voltage
240V AC
Minimum Operating Temperature
-18 Degrees F
IP Rating
IP20
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Reset Method
Time-Limit Reset
Mounting Style
Plug-In
Sealing
Enclosed
Frequency
50/60 Hz
Maximum Operating Temperature
122 Degrees F
Electrical Operating Durability
100,000
Power Consumption
2 VA
Mechanical Operating Durability
10,000,000
Compatible Grainger Part Number
1EGP2, 1EGP4, 6X156
CAD Available
Yes

Description

Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 240V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 10 sec, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In
