Shop DAYTON

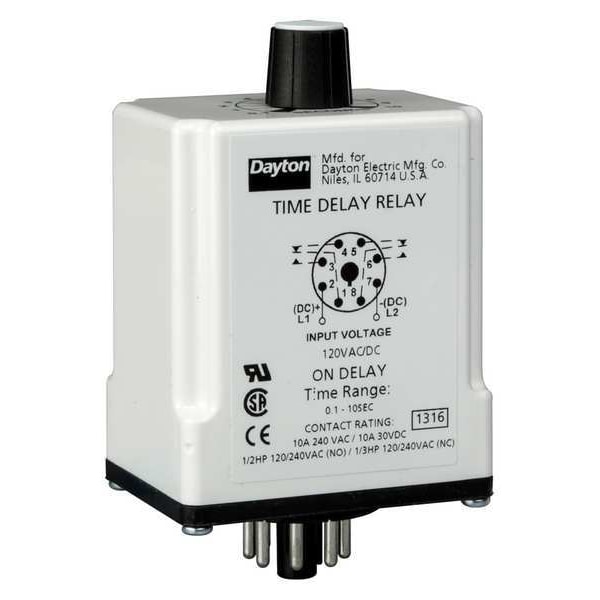

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT

  • Mfr # 1EGC1

  • Zoro # G1513443

CAD Available
product price:
$
46.79
/ea

Key Features

CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
3 sec
Maximum Time Setting
5 min
Base Shape
Octal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1EGC1
Zoro #
G1513443
UPC #
190735137833
Country of Origin
United States
Item
Single Function Time Delay Relay
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
3 sec
Maximum Time Setting
5 min
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC/DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Adjustment Method
Potentiometer
Socket Code
A
Contact Amp Rating (Resistive)
10A
Electrical Connection
Socket
Coil Rating
2VA
Contact Material
Silver Nickel
Operating Functions
1
Status Indicator
None
Socket
1EGP3, 1EGP5, 5X852
Input Voltage
120V AC/DC
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Frequency
50/60 Hz
Power Consumption
2 VA
Mounting Style
Plug-In
Maximum Operating Temperature
122 Degrees F
IP Rating
IP20
Mechanical Operating Durability
10,000,000
Reset Method
Time-Limit Reset
Minimum Operating Temperature
-18 Degrees F
Electrical Operating Durability
100,000
Sealing
Enclosed
CAD Available
Yes

Description

Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 3 sec, Maximum Time Setting 5 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
