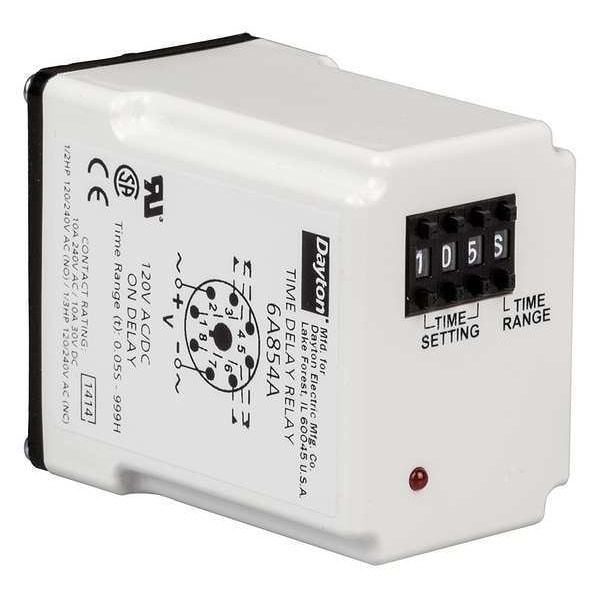

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT

Mfr # 6A854
Zoro # G1260131

CAD Available

93.59

Key Features

CAD Drawing

Delay Function

On Delay

Number of Delay Functions

Minimum Time Setting

0.05 sec

Maximum Time Setting

999 hr

Base Shape

Octal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 6A854
Zoro #: G1260131
UPC #: 190735359693
Country of Origin: United States

Dimensions

Overall Height - Relay: 3 in
Body Depth: 1.7 in
Body Height: 2.9 in
Body Width: 2.4 in
Overall Depth: 3 in

Details

Item: Single Function Time Delay Relay
Delay Function: On Delay
Number of Delay Functions: 1
Minimum Time Setting: 0.05 sec
Maximum Time Setting: 999 hr
Base Shape: Octal
Number of Pins: 8
Coil Voltage: 120V AC/DC
Current Rating: 10 A
Contact Form: DPDT
Contact Rating (AC): 10 A @ 240V AC
Contact Rating (DC): 10 A @ 30V
Contact Material: Silver Nickel
Contact Amp Rating (Resistive): 10A
Adjustment Method: Push Button, Rotary Knob
Socket: 1EGP3, 1EGP5, 5X852
Status Indicator: LED
Socket Code: A
Standards: CE Certified, CSA Certified, UL Listed, UL Socket
Operating Functions: 1
Coil Rating: 3VA
Electrical Connection: Socket
Input Voltage: 120V AC/DC
Frequency: 50/60 Hz
Mounting Style: Plug-In
Reset Method: Time-Limit Reset
Maximum Operating Temperature: 149 Degrees F
Power Consumption: 3 VA
Mechanical Operating Durability: 10,000,000
Operating Time Accuracy: +1% +50ms
Sealing: Enclosed
Electrical Operating Durability: 100,000
IP Rating: IP20
Minimum Operating Temperature: -18 Degrees F
CAD Available: Yes

Description

Single Function Time Delay Relay, Adjustment Method Push Button, Rotary Knob, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 999 hr, Number of Pins 8, Sealing Enclosed

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT

Mfr # 6A854
