This item is Discontinued.

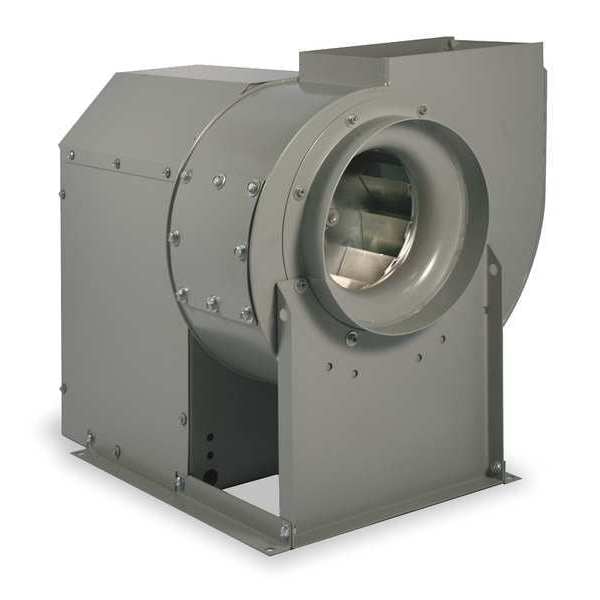

Dayton Spark Resistant Blowers, 1 Phase 488V85

Spark Resistant Blowers, 1 Phase (Discontinued)

  • Mfr # 488V85
  • Zoro # G1608343
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
488V85
Zoro #
G1608343
UPC #
00194484299279
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
11 1/8 in
Dimension N (In.)
12 33/64 in
Dimension J (In.)
19 19/64 in
Dimension M (In.)
18 49/64 in
Dimension E (In.)
25 3/32 in
Dimension K (In.)
10 11/16 in
Dimension B (In.)
9 1/2 in
Dimension F (In.)
19 3/16 in
Dimension H (In.)
11 5/64 in
Dimension C (In.)
9 1/2 in
Dimension A (In.)
11 in
Dimension G (In.)
11 5/64 in
Wheel Diameter
11 1/8 in
Outlet Width
11 in
Overall Depth
19 in
Overall Height
29 3/8 in
Overall Width
19 3/8 in
Manufacturer Warranty Length
1 yr Limited
Inlet Diameter
15 3/4 in

Details

Voltage
115 V
Motor HP
1/2 hp
Phase
1
CFM @ 1.000-In. SP
979
CFM @ 0.250-In. SP
683/1033/1358
Housing Material
Steel
Motor Enclosure
Open Dripproof
Blower RPM
1050/1400/1750
CFM @ 0.750-In. SP
709/1109
Type
Commercial Direct Drive
Motor RPM
1,800 RPM
Wheel Material
Aluminum
Item
Spark Resistant Blowers
Mounting Position
Vertical
Motor Type
Electronically Commutated
Agency Compliance
AMCA, UL and cUL Listed
Hz
60
Max. Ambient Temp. (F)
104 Degrees F
Full Load Amps
6.4 A
CFM @ 0.500-In. SP
443/875/1238
Mounting Orientation
Vertical
Minimum Fan Speed
1,050 RPM
Airflow @ 0.250 in SP
1,358 cfm
Number of Inlets
1
Frequency
60 Hz
Drive Type
Direct Drive
Nameplate Voltage
115/208-230V AC
Thermal Overload Protection
Auto
Maximum Ambient Temperature
104 Degrees F
Market
Commercial
Rotation
CCW
Includes Motor
Yes
Motor Speed
1,800 RPM
Maximum Fan Speed
1,750 RPM
Application
General HVAC
Minimum Ambient Temperature
-10 Degrees F
Number of Discharge Positions
9
Includes Drive Package
Yes
Standards
AMCA Air Performance Certified, UL/cUL Listed
Motor Horsepower
1/2 hp
Number of Speeds
Variable
Outlet Shape
Rectangular
Current
6.4 A
Maximum Static Pressure
1 in wc
Assembly
Assembled
For Air Type
Clean Air
Flange Type
Flanged
OEM Replacement
No

Description

Spark Resistant Blowers, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 11 1/8 in, Airflow @ 0.250 in SP 1,358 cfm
