  10. /
  11. Speed Control, Adjustable, Rotary, 120V, 8A
Shop All Fan Speed Control
Dayton

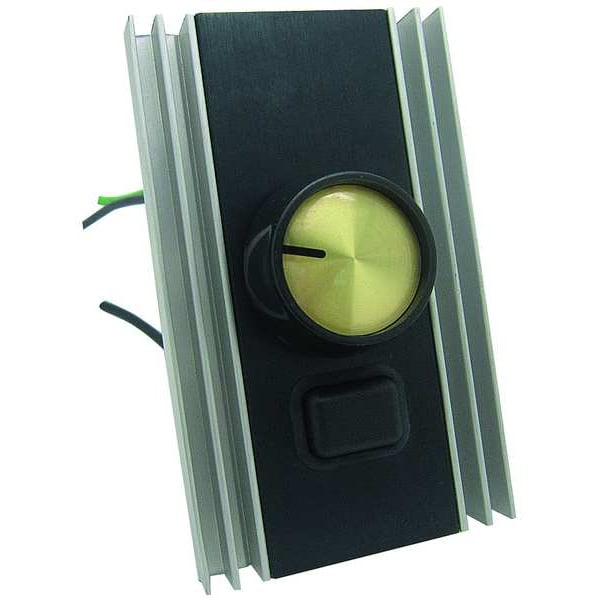

Speed Control, Adjustable, Rotary, 120V, 8A

product price: $76.09
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Amps 8 A
  • Voltage 120V
  • Plate Color Black/Silver
  • Switch Color Gold
  • Width (In.) 2 3/4 in
See all product information

Product Information

Dimensions

Width (In.) 2 3/4 in
Height (In.) 4 1/2 in
Depth (In.) 1 1/4 in
Overall Depth 1 1/4 in
Overall Width 2 3/4 in
Overall Height 4 1/2 in

Details

Item Speed Control
Max. Amps 8 A
Voltage 120V
Plate Color Black/Silver
Switch Color Gold
Agency Compliance UL Component Recognized
Type Rotary, Adjustable
Includes Mounting Screws, Wire Nuts
For Use With Dayton and Other Compatible Speed Controllable Ventilators and Fans
Fits Single Gang Box
Product Type Speed Control
Maximum Input Current 8 A
IP Rating IP5X
Standards cULus Component Recognized
Switch Type Dial, Touch Button
Temperature Sensor Temperature Sensor Not Included
Weight 0.383 lb
Reversible Not Reversible
Application Fans
Number of Switches or Dials 2
Input Voltage 120V AC
Items Controlled Fans
Maximum Input Wattage 960 W
Contact Form SPST
Plate Material Aluminum

Description

Speed Control, Switch Type Dial, Touch Button, Contact Form SPST, Input Voltage 120V AC, Maximum Input Current 8 A, Number of Switches or Dials 2, Plate Material Aluminum, Reversible Not Reversible, Temperature Sensor Temperature Sensor Not Included, Maximum Temperature Setting Not Applicable, Minimum Temperature Setting Not Applicable, Plate Color Black/Silver, Switch Color Gold, Overall Height 4 1/2 in, Overall Width 2 3/4 in, Overall Depth 1 1/4 in, Compatible with Series Not Applicable
