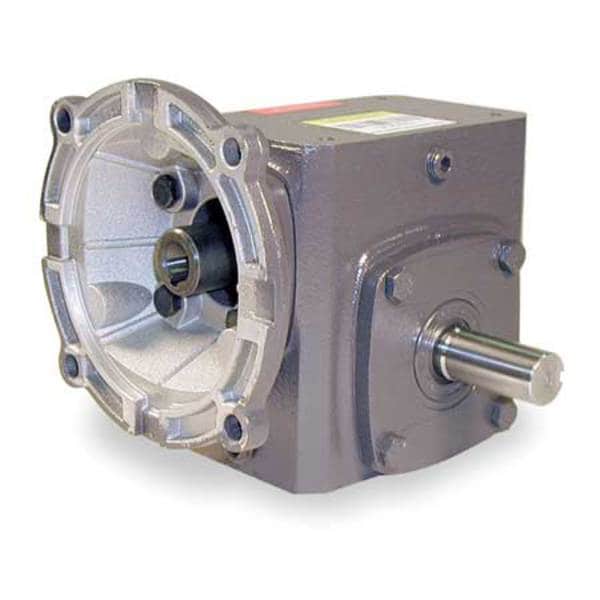

Speed Reducer, C-Face, 56C, 60:1

DAYTON| Zoro #: G0280007| Mfr #: 3GD39

$526.49 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Output Shaft Dia.: 7/8"Nominal Output RPM: 29Speed Reducer Type: C-Face
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0280007 Mfr #: 3GD39
Output Shaft Dia.: 7/8"Nominal Output RPM: 29
Speed Reducer Type: C-FaceMax. Output Torque: 415 in.-lb.
Finish: Powdered Epoxy PaintDuty: Standard
Input RPM: 1750Mounting: Any Position Except Input Motor Shaft Up
Gear Type: WormRotation: Forward/Reversible
Max. Input HP: 0.3Bearings: Ball
Seal Type: Double LipNumber of Stages: 1
Overhung Load: 700 lb.Worm Center Distance: 1.75"
Output Torque @ 1/40 HP: 3600 in.-lb.Output Torque @ 1/4 HP: 314 in.-lb.
Gear Material: Hardened and Ground SteelSolid/Hollow Output Shaft: Solid
Dimension U: 7/8"Pinion Material: Hardened Steel
Frame: 56cStandards: AGMA
Lubrication: Klubersynth UH1 6-460Worm Gear Material: Bronze
Single/Double Output/Universal: Single OutputOutput Torque @ 1/3 HP: 415 in.-lb.
Housing Material: Cast ironBore Dia.: 5/8"
Item: Speed ReducerReducer Model No.: 84141
Output Torque @ 1/2 HP: 415 in.-lb.Nominal Ratio: 60:1
Shaft Orientation: Right AngleCountry of Origin (subject to change): United States

Description

Speed Reducer, C-Face, Right Angle Shaft Orientation, Standard Duty, 1750 Input RPM, 29 Nominal Output RPM, Worm Center Distance 1.75 In., Bore Dia. 5/8 In., 56C Frame, Overhung Load 700 lb., 60:1 Nominal Ratio, Max. Input HP 0.3, Max. Output Torque 415 in.-lb., Number of Stages 1, Forward/Reversible Rotation, Any Position Except Input Motor Shaft Up Mounting, Ball Bearings, Hardened Steel Pinion Material, Worm Gear Type, Cast Iron Housing Material, Single Output, Output Shaft Dia. 7/8 In.
