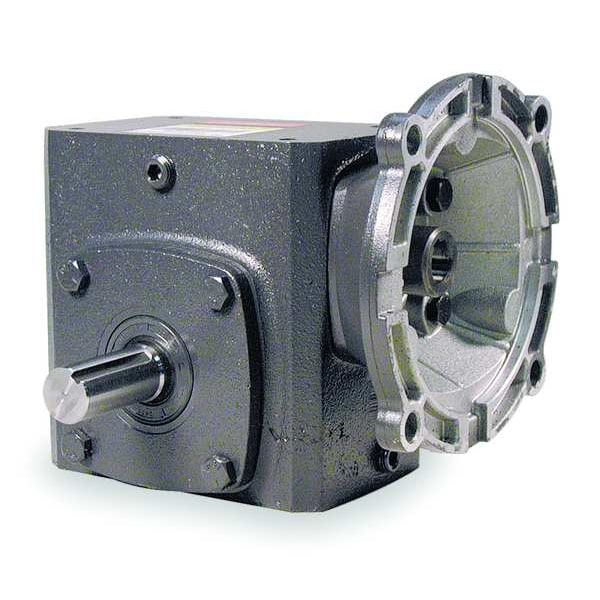

Speed Reducer, C-Face, 56C, 60:1

DAYTON| Zoro #: G0705433| Mfr #: 4Z292

$585.97 /ea

This item ships free. Details.Standard ground shipping.
Details:
Item: Speed Reducer
Bore Dia.: 5/8"
Nominal Output RPM: 29
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0705433 Mfr #: 4Z292
Item: Speed ReducerBore Dia.: 5/8"
Nominal Output RPM: 29Solid/Hollow Output Shaft: Solid
Bearings: BallOverhung Load: 700 lb.
Single/Double Output/Universal: Single OutputDimension U: 7/8"
Output Shaft Dia.: 7/8"Gear Type: Worm
Output Torque @ 1/3 HP: 415 in.-lb.Speed Reducer Type: C-Face
Output Torque @ 1/4 HP: 314 in.-lb.Housing Material: Cast iron
Reducer Model No.: 83956Worm Center Distance: 1.75"
Nominal Ratio: 60:1Output Torque @ 1/2 HP: 415 in.-lb.
Rotation: Forward/ReversibleGear Material: Hardened and Ground Steel
Input RPM: 1750Pinion Material: Hardened Steel
Duty: StandardSeal Type: Double Lip
Worm Gear Material: BronzeFrame: 56c
Shaft Orientation: Right AngleLubrication: Klubersynth UH1 6-460
Max. Input HP: 0.3Number of Stages: 1
Output Torque @ 1/40 HP: 3600 in.-lb.Standards: AGMA
Max. Output Torque: 415 in.-lb.Mounting: Any Position Except Input Motor Shaft Up
Finish: Powdered Epoxy PaintCountry of Origin (subject to change): United States

Description

Speed Reducer, C-Face, Right Angle Shaft Orientation, Standard Duty, 1750 Input RPM, 29 Nominal Output RPM, Worm Center Distance 1.75 In., Bore Dia. 5/8 In., 56C Frame, Overhung Load 700 lb., 60:1 Nominal Ratio, Max. Input HP 0.3, Max. Output Torque 415 in.-lb., Number of Stages 1, Forward/Reversible Rotation, Any Position Except Input Motor Shaft Up Mounting, Ball Bearings, Hardened Steel Pinion Material, Worm Gear Type, Cast Iron Housing Material, Single Output, Output Shaft Dia. 7/8 In.
