Shop DAYTON

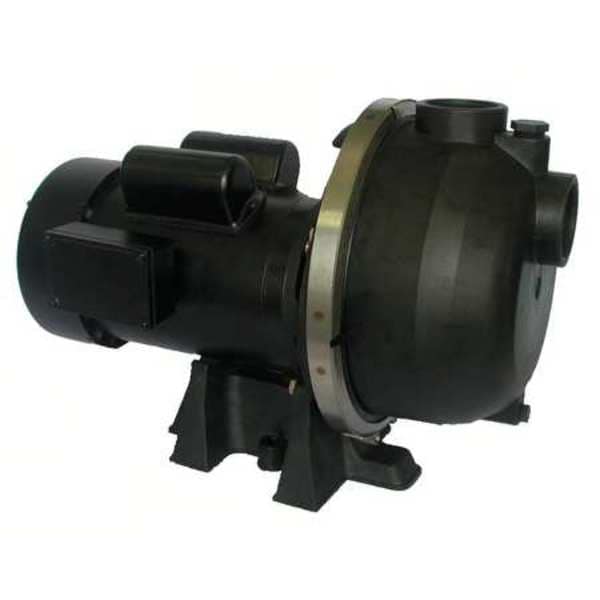

Sprinkler Pump, 3 hp, 120/208 to 240V AC, 1 Phase

  • Mfr # 5UPW2

  • Zoro # G1385343

product price:
$
1,090.99
/ea
Free Shipping & Returns

Key Features

Pressure Pump Type
Centrifugal Pump
Inlet
2"
HP - Pumps
3 hp
Outlet
2"
Voltage - Pumps
120/208 to 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UPW2
Zoro #
G1385343
UPC #
190735351970
Country of Origin
China

Dimensions

Outlet Size - Pumps
2 in NPT
Inlet Size - Pumps
2 in NPT
Length
23 in
Height
13 3/4 in
Width
11 1/4 in
Manufacturers Warranty Length
1 yr
Overall Height
13.87 in
Overall Length
23 in
Overall Width
11.42 in
Compatible Discharge Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
2 in
Discharge Diameter
2 in
Inlet Diameter
2 in
Motor Frame Size
56J
Wire Rope Length
23 in

Details

Item
Sprinkler Pump
Pressure Pump Type
Centrifugal Pump
Inlet
2"
HP - Pumps
3 hp
Outlet
2"
Voltage - Pumps
120/208 to 240V AC
HP
3
Phase - Pumps
1
Wetted Materials
SS,Viton,Carbon,Ceramic, Thermoplastic
Voltage
115/208-230
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Inlet (In.)
2
Suction Lift
25 ft
Max. Pressure - Pumps
61 psi
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Housing Material - Pumps
Thermoplastic
Best Efficiency GPM @ Head
55 @ 90 ft
GPM @ 20 PSI
80
Stages
1
GPM @ 25 PSI
73
Max. Case Pressure
80 psi
Max. Specific Gravity
1
GPM @ 15 PSI
86
Features
Stainless Steel Fasteners and Inserts
Includes
Manual
Duty
Continuous
Phase
Single
Max. Pressure
61 psi
GPM @ 40 PSI
55
Motor Type
Capacitor-Start/Run
Frame
56J
Max. Head
141 ft
GPM @ 50 PSI
40
GPM @ 35 PSI
61
Thermal Protection
Automatic Reset
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Hz
60
Impeller Type
Closed
Agency Compliance
Motor Only CSA
Bearing Type
Double Shielded Pre Lubricated Ball
GPM @ 10 PSI
92
Impeller Material
Noryl
Housing Material
Thermoplastic
Amps
28.5/14.8-14.2
GPM @ 45 PSI
48
Inlet Pressure
19 psi
Port Rotation
90 Degrees Increments
GPM @ 30 PSI
66
Motor Enclosure
Totally Enclosed Fan Cooled
Standards
CUS
Shaft Material
Stainless Steel
Specific Gravity (Maximum)
1
Maximum Flow Rate
92 gpm
Flow Rate @ 20 psi
80 gpm
Flow Rate @ 50 psi
40 gpm
Thermal Overload Protection
Yes
Shut Off Pressure (Maximum)
61 psi
Wetted Material
Carbon, Ceramic, Stainless Steel, Thermoplastic, Viton
Maximum RPM
3,450 RPM
Flow Rate @ 10 psi
92 gpm
Discharge Type
NPT
Compatible with Media Type
Non-Flammable Liquids
Motor Frame Designation
56J
Intake Type
NPT
Case Pressure (Maximum)
80 psi
Flow Rate @ 30 psi
66 gpm
Frequency
60 Hz
Duty Cycle
Continuous
Suction Lift (Maximum)
20 ft
Maximum Feet of Head
141 ft
Motor Ambient Temperature (Maximum)
104 Degrees F
Pump Housing Material
Thermoplastic
Horsepower
3 hp
Flow Rate @ 15 psi
86 gpm
Flow Rate @ 40 psi
55 gpm
For Use With Potable Systems
No
Priming
Self-Priming
Best Efficiency Flow
55 gpm
Discharge Rotation
90 Degrees Increments
Nameplate Voltage
115/208-230V AC
Best Efficiency Head
90 ft
Number of Stages
1
Motor Design
Capacitor-Start/Run
Media Temperature - Minimum
40 Degrees F
Electrical Connection Type
Hardwired
Ambient Temperature - Minimum
40 Degrees F
Full Load Current
28.5/14.8-14.2A
Chemical Compatibility
Non-Flammable Liquids
Pump Design
End Suction
Feet of Head (Maximum)
141 ft
Media Temperature - Maximum
180 Degrees F
Pumping Application
Irrigation, Sprinkler Systems, Spraying Systems
Ambient Temperature - Maximum
104 Degrees F
Flow Rate (Maximum)
92 gpm
Shaft Seal Material
Carbon/Ceramic/FKM/Stainless Steel
Case Pressure - Maximum
80 psi
Pump Drive Configuration
Frame-Mounted
Shut Off Pressure - Maximum
61 psi

Description

Sprinkler Pump, Phase Single, Pump Housing Material Plastic, Horsepower 3 hp, Nameplate Voltage 120/208-240V AC, Suction Lift (Maximum) 20 ft, Flow Rate @ 10 psi 92 gpm, Flow Rate @ 20 psi 80 gpm, Maximum Feet of Head 141 ft, Shut Off Pressure (Maximum) 61 psi, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 2 in, Intake Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 psi 66 gpm, Flow Rate @ 40 psi 55 gpm, Priming Self-Priming, Best Efficiency Flow 55 gpm
