Shop DAYTON

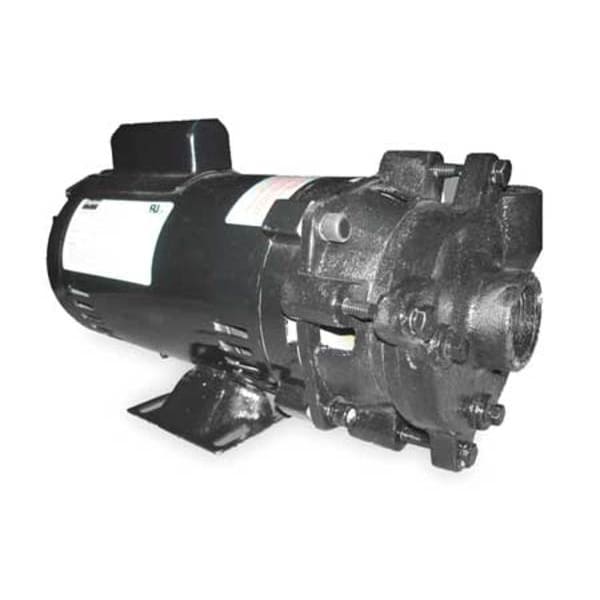

Cast Iron 1-1/2 HP Centrifugal Pump 115/208-230V

  • Mfr # 2ZWP7

  • Zoro # G0607984

product price:  $694.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1 1/2 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2ZWP7
Zoro #
G0607984
UPC #
190735241813
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Length
15 in
Manufacturers Warranty Length
1 yr
Height
6 in
Max. Dia. Solids
1/2 in
Width
7 1/8 in
Overall Height
6 in
Overall Width
7.1 in
Overall Length
14.4 in
Solid Diameter (Maximum)
0.5 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Motor Frame Size
56J
Discharge Diameter
1 1/4 in
Impeller Diameter
4 1/4 in
Inlet Diameter
1 1/2 in
Shaft Outer Diameter
5/8 in
Wire Rope Length
14.4 in

Details

HP - Pumps
1 1/2 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
29 psi
Max. Head
67 ft
Motor Enclosure - Pumps
Open Dripproof
Inlet
1-1/2" NPT
GPM of Water @ 20 Ft. of Head
104
Impeller Type
Semi Open
Motor Type
Capacitor-Start
Housing Material
Cast iron
Phase
Single
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Max. Specific Gravity
1.0
Motor RPM
3450
Seal Material
Buna-N
Item
Centrifugal Pump
GPM of Water @ 50 Ft. of Head
64
Impeller Material
Cast Iron
Voltage
115/208-230
HP
1-1/2
Hz
60
Port Rotation
4 Position Increments
Motor Enclosure
Open Drip Proof
Best Efficiency Range GPM @ Head
55 to 99 gpm @ 55 to 25 ft
Frame
56J
Wetted Materials
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
GPM of Water @ 10 Ft. of Head
115
Max. Pressure
29.00 psi
Includes
Manual
GPM of Water @ 15 Ft. of Head
109
GPM of Water @ 60 Ft. of Head
40
Duty
Continuous
Min. GPM @ Head
40 gpm @ 60 ft
Agency Compliance
c UL us
Max. Liquid Temp.
200 Degrees F
GPM of Water @ 30 Ft. of Head
94
Max. Case Pressure
200 psi
GPM of Water @ 40 Ft. of Head
81
GPM of Water @ 25 Ft. of Head
99
Amps
17.0/9.0-8.5
Max. GPM @ Head
115 gpm @ 10 ft
Best Efficiency GPM @ Head
72 gpm @ 44 ft
Outlet
1-1/4" NPT
Inlet Pressure
200 psi
Bearing Type
Ball
Standards
UL Recognized Motor
Maximum Media Temperature
200 Degrees F
Flow Rate @ 60 ft of Head (Maximum)
40 gpm
Compatible with Media Type
Non-Flammable Liquids
Impeller Design
Semi-Open
Maximum RPM
3,450 RPM
Flow Rate @ 20 ft of Head (Maximum)
104 gpm
Flow Rate @ 50 ft of Head (Maximum)
64 gpm
Frequency
60 Hz
Feet of Head (Minimum)
10 ft
Discharge Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
115 gpm
For Use With Potable Systems
No
Flow Rate @ 15 ft of Head (Maximum)
109 gpm
Intake Type
NPT
Flow Rate @ 40 ft of Head (Maximum)
81 gpm
Shut Off Pressure (Maximum)
29 psi
Minimum Media Temperature
40 Degrees F
Pump Housing Material
Cast Iron
Minimum Flow Rate
40 gpm
Flow Rate @ 30 ft of Head (Maximum)
94 gpm
Motor Frame Designation
56J
Specific Gravity (Maximum)
1
Duty Cycle
Continuous
Best Efficiency Flow
72 gpm
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Maximum Feet of Head
67 ft
Discharge Rotation
90 Degrees Increments
Maximum Flow Rate
115 gpm
Horsepower
1 1/2 hp
Nameplate Voltage
115/230V AC
Seal Type
Mechanical
Shaft Material
304 Stainless Steel
Best Efficiency Head
44 ft
Pumping Application
Boiler Feed, Booster Services, Chemical Transfer, Condensate Return, Filtration, Irrigation, Jockey Pump Services, Liquid Transfer, Spraying Systems, Water Circulation
Volute Material
Cast Iron
Media Temperature - Minimum
40 Degrees F
Feet of Head (Maximum)
67 ft
Drive Coupling Type
No Coupling
Discharge Orientation
Top
Viscosity (Maximum)
100 SUS
Flow Rate (Maximum)
115 gpm
Mounting Orientation
Horizontal
Inlet Position
Center
Media Temperature - Maximum
200 Degrees F
Motor Speed - Maximum
3,450 RPM
Priming
Manual
Full Load Current
17.0/8.5 A
Case Pressure - Maximum
100 psi
Shut Off Pressure - Maximum
29 psi
Chemical Compatibility
Non-Flammable Liquids
Flow Rate (Minimum)
40 gpm
Inlet Orientation
Side
Thermal Overload Protection
Yes
Discharge Rotation Increments
0 Degrees
Hazardous Location Class
Not Rated
Shaft Seal Type
Mechanical
Number of Stages
1
Electrical Connection Type
Hardwired
Flow Rate @ 10 ft of Head - Maximum
115 gpm
Shaft Seal Material
Buna-N
Discharge Position
Offset
Ambient Temperature - Maximum
40 Degrees C

Description

Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 1 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 81 gpm, Flow Rate @ 60 ft of Head (Maximum) 40 gpm, Maximum Feet of Head 67 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 115 gpm, Flow Rate @ 10 ft of Head (Maximum) 115 gpm, Flow Rate @ 15 ft of Head (Maximum) 109 gpm
