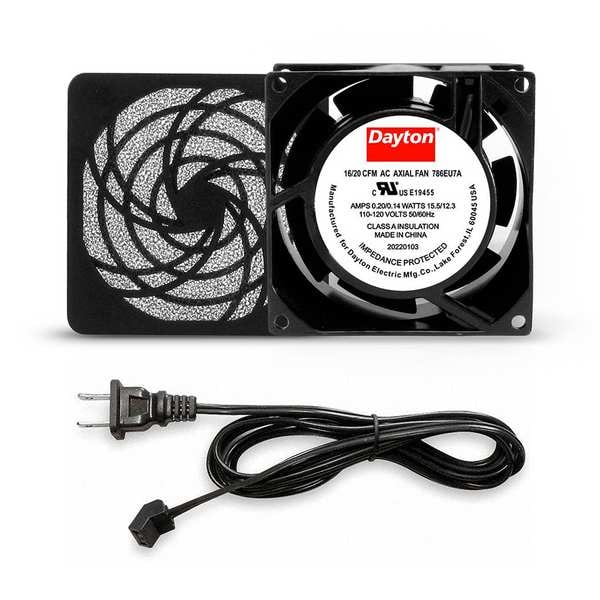

Dayton Square Axial Fan Kit, 120V AC, Cast Aluminum, 3 1/8 in W. 786EU7 - main

Square Axial Fan Kit, 120V AC, Cast Aluminum, 3 1/8 in W.

  • Mfr # 786EU7

  • Zoro # G504985503

product price:  $51.19
/ea

Key Features

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
16/20 cfm
Depth
1 in
Height
3 1/8 in
Housing Material
Cast Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
786EU7
Zoro #
G504985503
UPC #
-
Country of Origin
China

Dimensions

Depth
1 in
Height
3 1/8 in
Width
3 1/8 in
Fan Cord Length
72 in

Details

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
16/20 cfm
Housing Material
Cast Aluminum
Watts
15.5/12.3 W
Includes
Fan, Steel Wire Guard, Cord Set with NEMA 1-15 Plug
Voltage
120V AC
Hz
50/60 Hz Hz
Mounting Eye O.C.
2 13/16 in
Amps
0.20/0.14 A
Thermal Protection
Impedance Protected
Item
Square Axial Fan Kit
Mounting Position
Vertical or Horizontal
IP Rating
20
Motor Insulation
Class A
Electrical Connection - Fans
Terminals
Max. Ambient Temp.
150 Degrees F
Bearing Type
Ball
Fan Shape
Square
Color
Black
RPM
2600/3100 RPM
Standards
cULus Recognized
Environmental Applications
Equipment Cooling
Motor Design
Shaded Pole
Sound Level
33/36

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 in, Width 3 1/8 in, Fan Cord Length 72 in, CFM @ 0.000-In. SP 16 cfm, 20 cfm, Watts 15.5/12.3 W, Voltage 120V AC, 60/50 Hz Hz, 0.2/0.14 A Amps, Electrical Connection - Fans Terminals, Sound Level 36 dBA, IP Rating IP20, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,600 RPM, 3,100 RPM RPM, Motor Design Shaded Pole, Motor Insulation A, Thermal Protection Yes, Max. Ambient Temp. 150 Degrees F
