Shop DAYTON

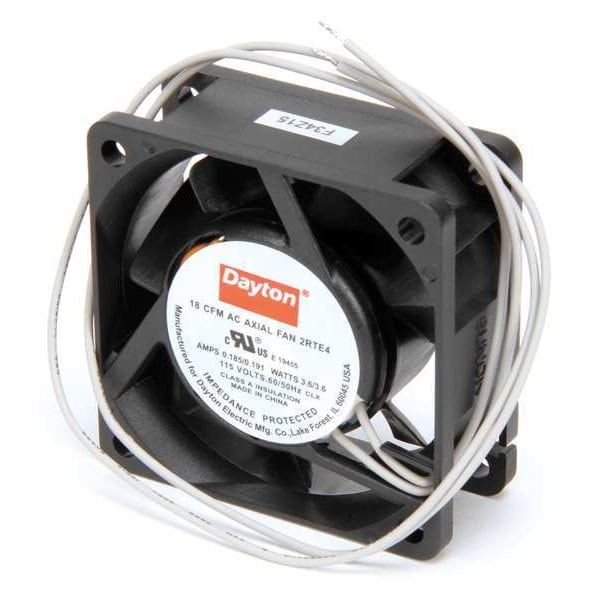

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 2 3/8 in W.

  • Mfr # 2RTE4

  • Zoro # G1078375

product price:  $19.39
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
18 cfm
Depth
1 in
Height
2 3/8 in
Housing Material
Polybutylene Terephthalate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2RTE4
Zoro #
G1078375
UPC #
190735230145
Country of Origin
China

Dimensions

Depth
1 in
Height
2 3/8 in
Width
2 3/8 in
Fan Height
2-3/8"
Fan Width
2-3/8"
Fan Width
2-3/8"
Fan Depth
1"
Lead Length
12 5/8 in

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
18 cfm
Housing Material
Polybutylene Terephthalate
Phase
1
Shape
Square
Watts
2.8/2.7 W
Voltage
115V AC
Motor Insulation
A
Fan Voltage
115VAC
Electrical Connections
12" Leads
Fan Watts
3.6
Item
Axial Fan
Mounting Eye O.C.
1 15/16 in
Motor Type
Shaded pole
Bearings
Zero Friction Air
Hz
60/50 Hz
Amps
0.22 A
Mounting Position
Horizontal/Vertical
Fan RPM
4200 / 4100
Housing Finish
Black Painted
Mounting Eye O.C. - Fans
1-15/16"
Max. Ambient Temp.
158 Degrees F
dBA
31
Fan dBA
31
Fan Item
Axial Fan
Fan Shape
Square
Thermal Protection
Yes
Electrical Connection - Fans
Lead Wires
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
IP Rating
IP20
RPM
4,100 RPM, 4,200 RPM
Bearing Type
Sleeve
Motor Design
Shaded Pole
Environmental Applications
Equipment Cooling
Color
Black
Environment Rating
Dry
Sound Level - Minimum
30 dBA
Includes Guard
No
Includes Filter
No
Sound Level
31 dBA
Removable Base
Permanently Lubricated

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 1 15/16 in, Height 2 3/8 in, Depth 1 in, Width 2 3/8 in, CFM @ 0.000-In. SP 18 cfm, Watts 2.8/2.7 W, Voltage 115V AC, 60/50 Hz Hz, 0.22 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 31/30, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Zero Friction Air, 4200/4100 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F
