Shop DAYTON

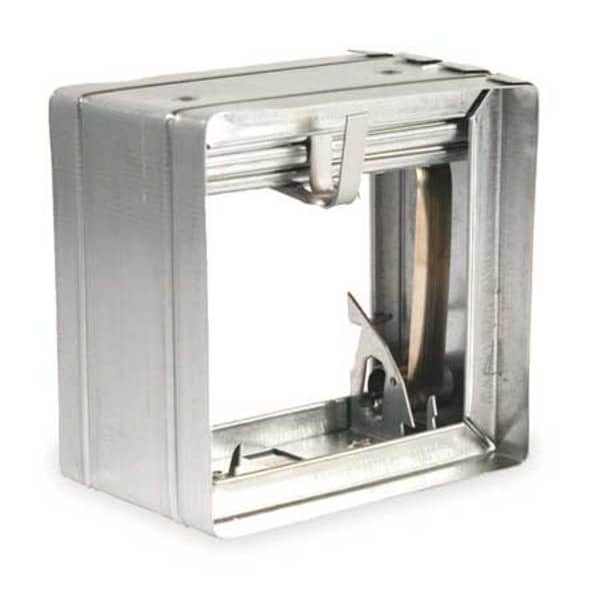

Square Fire Damper, 15-3/4 In. W

  • Mfr # 2TGF9

  • Zoro # G2887744

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Dynamic, Vertical or Horizontal
Shape
Square
Includes
Stainless Steel Closure Spring; UL Fusible Link
Material
22 ga Galvanized Steel
Recommended Retaining Angle
2TGH7
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2TGF9
Zoro #
G2887744
UPC #
190735233252
Country of Origin
United States

Dimensions

Nominal Duct Width
16 in
Damper Depth
3 11/16 in
Damper Width
15 3/4 in
Damper Height
15 3/4 in
Nominal Duct Height
16 in
Rough Opening Width
16 in
Overall Width
16 in
Overall Height
16 in
Frame Depth
3 3/4 in
Frame Material Thickness
22 ga
Overall Length
3 3/4 in
Wire Rope Length
3 3/4 in

Details

Item
15.75"H-W 3.7"L Square GStl Fire Dampr
Mounting Type
Dynamic, Vertical or Horizontal
Shape
Square
Includes
Stainless Steel Closure Spring; UL Fusible Link
Material
22 ga Galvanized Steel
Recommended Retaining Angle
2TGH7
Fusible Link
165 Degrees F
Fire Rated
1 1/2 hr
Damper Item
Fire Damper
Standards
NFPA 90A,101, CSFM, IBC, NFPA 80, NYC MEA, UL 555
Damper Shape
Square
For Use With
Low Pressure HVAC Systems
Free Area
1.3 sq ft
Maximum Pressure
4 in wc
Closure Pressure Rating
4 in wc
Switch Action
Normally Open
Closure Velocity Rating
2,000 fpm
Closure Type
Spring
For Duct Shape
Square
Airflow Direction
Horizontal
Blade Material
Galvanized Steel
Maximum Ambient Temperature
165 Degrees F
Fusible Link Temperature
165 Degrees F
Number of Panels
1
Frame Less Flange
256 sq in
Blade Type
Curtain
Maximum Air Velocity
4000 fpm
Frame Material
Galvanized Steel
Mounting Position
Horizontal; Vertical
Damper Application
Fire
Rough Opening Shape
Square
Damper Type
Dynamic
Type
Dynamic With Fire Resistance Rating Less Than 3 Hours

Description

15.75 In.H-W 3.7 In.L Square GStl Fire Dampr, Damper Application Fire, Frame Material Galvanized Steel, Number of Panels 1, Maximum Air Velocity 4000 fpm, Overall Height 16 in, Rough Opening Diameter Not Applicable, Rough Opening Shape Square, Fits Fan Diameter Not Applicable, For Duct Shape Square, Free Area 1.3 sq ft, Overall Width 16 in, Frame Material Thickness 22 ga, Overall Length 3 3/4 in, Connection Type Not Applicable, Frame Depth 3 3/4 in, Rough Opening Length Not Applicable
