  11. Square Fire/Smoke Damper, 15-3/4 In. W

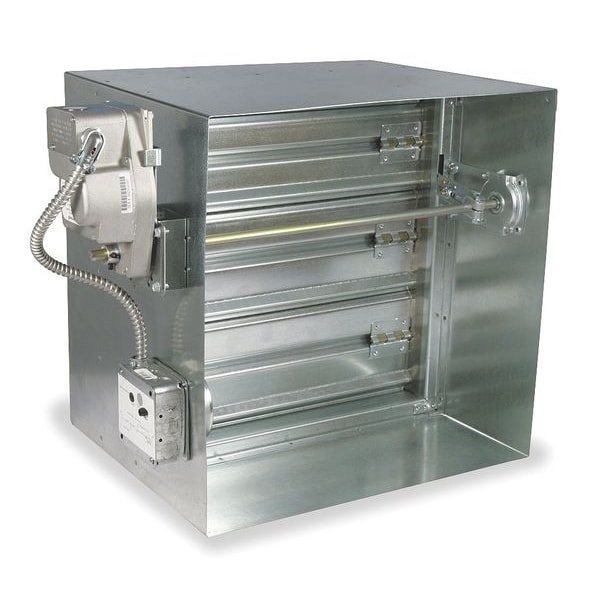

Dayton Square Fire/Smoke Damper, 15-3/4 In. W 3HGK3 - main

Square Fire/Smoke Damper, 15-3/4 In. W

  • Mfr # 3HGK3

  • Zoro # G2219786

product price: $598.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Vertical/Horizontal
Actual Width
15 3/4 in
Includes
Factory Mounted Actuator; Stainless Steel Closure Spring; UL Fusible Link
Voltage
120 V
Depth
16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3HGK3
Zoro #
G2219786
UPC #
190735289198
Country of Origin
United States

Dimensions

Actual Width
15 3/4 in
Depth
16 in
Actual Height
15 3/4 in
Nominal Duct Height
16 in
Nominal Duct Width
16 in
Rough Opening Width
16 in
Overall Height
15 3/4 in
Overall Width
16 in
Overall Length
16 in
Frame Material Thickness
16 ga
Blade Material Thickness
16 ga

Details

Item
15.75"H 16"L 16"W GStl Fire/Smke Dampr
Mounting Type
Vertical/Horizontal
Includes
Factory Mounted Actuator; Stainless Steel Closure Spring; UL Fusible Link
Voltage
120 V
Material
Galvanized Steel
Frame
16 ga
Damper Item
Motorized Fire/Smoke Damper
Hz
60
Max. Velocity
2,000 fpm
Recommended Retaining Angle
Mfr. No. 2TGH7
Phase
1
Standards
AMCA; CSFM; IBC; NFPA 80,90A,92,101 and 105; UL 555S
Seals
Extruded Silicone Rubber Blade
Damper Shape
Square
Fire Rated
1 1/2 hr
Max. Temp.
350 Degrees F
Blade
16 ga
Free Area
159.7 sq in
Pressure Differential Max.
4 in wg
Jamb Seal Material
Stainless Steel
Maximum Air Velocity
2000 fpm
Nameplate Voltage
120V AC
Damper Application
Fire and Smoke
Fusible Link Temperature
350 Degrees F
Airflow Direction
Horizontal; Vertical
Number of Panels
1
Blade Seal Material
Silicone
Maximum Temperature Rating
350 Degrees F
Blade Type
V-Groove
Mounting Position
Horizontal; Vertical
Maximum Air Pressure
4 in wg
Frame Material
Galvanized Steel
ACMA Leakage Class
2
Flange Type
Hat Channel
Blade Orientation
Parallel Blades
Rough Opening Shape
Square
Electrical Connection
Hardwired
Switch Action
Normally Closed
For Air Type
Emergency Smoke
For Duct Shape
Square
Blade Material
Galvanized Steel
Closure Pressure Rating
4 in wc
Frequency
60 Hz
Closure Type
Motorized
Frame Less Flange
256 sq in
Includes Motor
Yes
Damper Type
Dynamic
Closure Velocity Rating
2,000 fpm

Description

15.75 In.H 16 In.L 16 In.W GStl Fire/Smke Dampr, For Nominal Duct Diameter Not Applicable, Damper Application Fire and Smoke, Number of Panels 1, Overall Height 15 3/4 in, Overall Length 16 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 16 in, Frame Material Thickness 16 ga, Blade Material Galvanized Steel, Maximum Air Pressure 4 in wg, Overall Diameter Not Applicable, Rough Opening Width 16 in, Damper Type Dynamic, Maximum Air Velocity 2000 fpm, Nameplate Voltage 120V AC
