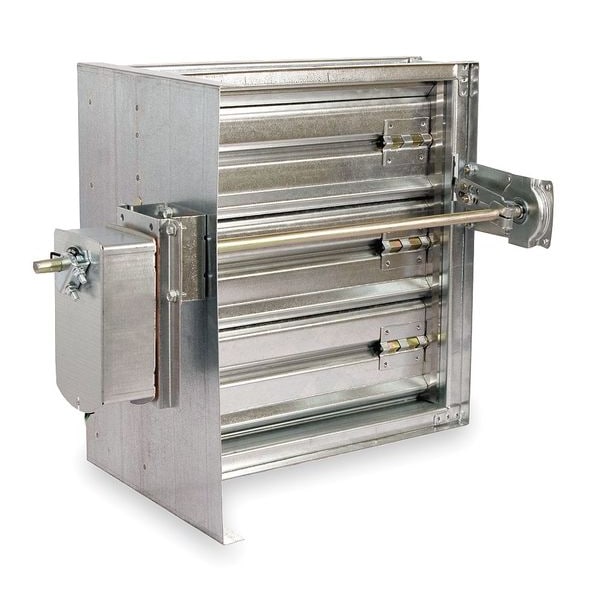

Dayton Square Smoke Damper, Vertical/Horizontal 3HGG3 - main

Square Smoke Damper, Vertical/Horizontal

  • Mfr # 3HGG3

  • Zoro # G2500057

product price: $461.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Vertical/Horizontal
Actual Width
15 3/4 in
Includes
Factory Mounted Actuator
Voltage
24 V
Depth
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3HGG3
Zoro #
G2500057
UPC #
190735288924
Country of Origin
United States

Dimensions

Actual Width
15 3/4 in
Depth
12 in
Actual Height
15 3/4 in
Nominal Duct Width
16 in
Nominal Duct Height
16 in
Rough Opening Width
16 in
Overall Height
15 3/4 in
Overall Width
16 in
Blade Material Thickness
16 ga
Overall Length
12 in
Frame Material Thickness
16 ga

Details

Item
15.75"H 12"L 16"W Motrzd Smoke Damper
Mounting Type
Vertical/Horizontal
Includes
Factory Mounted Actuator
Voltage
24 V
Material
Galvanized Steel
Max. Velocity
2,000 fpm
Seals
Flexible Stainless Steel Jamb
Blade
16 ga
Damper Item
Motorized Smoke Damper
Standards
AMCA; CSFM; IBC; NFPA 80,90A,92,101 and 105; UL 555S
Recommended Retaining Angle
Mfr. No. 2TGH7
Hz
60
Frame
16 ga
Phase
1
Damper Shape
Square
Free Area
159.7 sq in
Pressure Differential Max.
4 in wg
Max. Temp.
350 Degrees F
Jamb Seal Material
Stainless Steel
Pressure Drop @ 1000 fpm (AMCA 5.2)
0.088 in wg
Blade Material
Galvanized Steel
Maximum Air Velocity
2000 fpm
Fusible Link Temperature
350 Degrees F
Maximum Temperature Rating
350 Degrees F
Switch Action
Normally Closed
Airflow Direction
Horizontal; Vertical
Nameplate Voltage
24V AC
For Duct Shape
Square
Flange Type
Hat Channel
Frame Material
Galvanized Steel
Number of Panels
1
ACMA Leakage Class
2
Includes Motor
Yes
Blade Orientation
Parallel Blades
Frequency
60 Hz
Frame Less Flange
256 sq in
Maximum Air Pressure
4 in wg
Rough Opening Shape
Square
Closure Pressure Rating
4 in wc
Damper Type
Dynamic
Mounting Position
Horizontal
Blade Seal Material
Silicone
Blade Type
V-Groove
Damper Application
Smoke
Closure Velocity Rating
2,000 fpm
For Air Type
Emergency Smoke
Closure Type
Motorized

Description

15.75 In.H 12 In.L 16 In.W Motrzd Smoke Damper, For Nominal Duct Diameter Not Applicable, Damper Application Smoke, Number of Panels 1, Overall Height 15 3/4 in, Overall Length 12 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 16 in, Frame Material Thickness 16 ga, Blade Material Galvanized Steel, Maximum Air Pressure 4 in wg, Overall Diameter Not Applicable, Rough Opening Width 16 in, Damper Type Dynamic, Maximum Air Velocity 2000 fpm, Nameplate Voltage 24V AC
