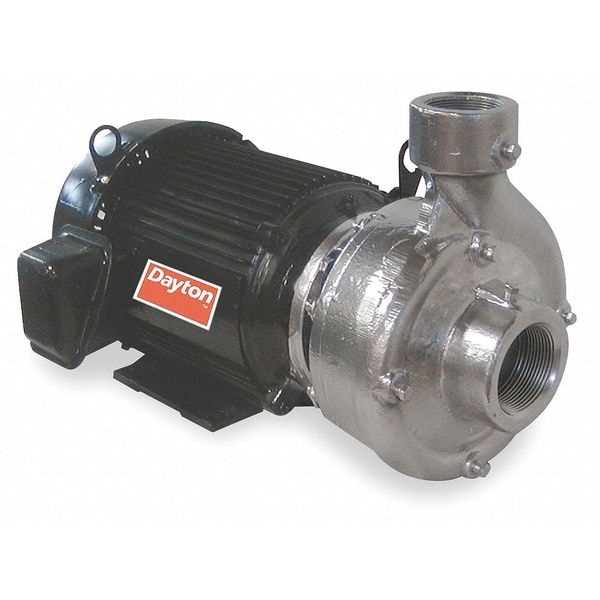

Stainless Steel 10 HP Centrifugal Pump 208-230/460V

  • Mfr # 12A080

  • Zoro # G4327075

product price:
$
3,048.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Discharge Pump Type
Straight Center Discharge Pump
HP - Pumps
10 hp
Phase - Pumps
3
Voltage - Pumps
208 to 240/480V AC
Max. Pressure - Pumps
82 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12A080
Zoro #
G4327075
UPC #
190735114599
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Width
13 1/8 in
Max. Dia. Solids
7/20 in
Height
13 1/4 in
Manufacturers Warranty Length
1 yr
Length
24 in
Overall Height
13.2 in
Overall Length
24 in
Overall Width
13.1 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
2 in
Compatible Intake Pipe Size
2 1/2 in
Solid Diameter (Maximum)
0.35 in
Discharge Diameter
2 in
Motor Frame Size
215JM
Shaft Outer Diameter
7/8 in
Inlet Diameter
2 1/2 in
Impeller Diameter
6 11/16 in
Wire Rope Length
24 in

Details

Discharge Pump Type
Straight Center Discharge Pump
HP - Pumps
10 hp
Phase - Pumps
3
Voltage - Pumps
208 to 240/480V AC
Max. Pressure - Pumps
82 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head
147 to 171 gpm @ 138 to 101 ft
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Impeller Material
Stainless Steel
Housing Material
Stainless steel
Motor RPM
3,450 RPM
Inlet
2-1/2" NPT
Seal Material
Carbon, Ceramic, Viton
Motor Type
3-Phase
Frame
215JM
Amps
25.6-24.4/12.2
Hz
60
Bearing Type
Ball
Port Rotation
4 Position Increments
Agency Compliance
UL Approval in Motor
Outlet
2" NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Inlet Pressure
100 psi
Max. Specific Gravity
1.0
Voltage
208-230/460
Max. Liquid Temp.
200 Degrees F
Duty
Continuous
Max. Head
190 ft
HP
10
Item
Centrifugal Pump
Max. Pressure
82 psi
Impeller Type
Enclosed
Phase
Three
Standards
UL Recognized Motor
Duty Cycle
Continuous
Horsepower
10 hp
Flow Rate @ 120 ft of Head (Maximum)
166 gpm
Maximum Media Temperature
200 Degrees F
Intake Type
NPT
Shaft Material
316 Stainless Steel/Steel
Maximum Flow Rate
195 gpm
Minimum Flow Rate
80 gpm
Motor Frame Designation
215JM
Best Efficiency Head
138 ft
Impeller Design
Closed
Minimum Media Temperature
40 Degrees F
Discharge Type
NPT
Maximum RPM
3,450 RPM
Best Efficiency Flow
171 gpm
Feet of Head (Minimum)
80 ft
Specific Gravity (Maximum)
1
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Flow Rate @ 140 ft of Head (Maximum)
138 gpm
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Flow Rate @ 80 ft of Head (Maximum)
195 gpm
Nameplate Voltage
230/460V AC
Seal Type
Mechanical
Flow Rate @ 90 ft of Head (Maximum)
189 gpm
Frequency
60 Hz
Pump Housing Material
Stainless Steel
Flow Rate @ 180 ft of Head (Maximum)
80 gpm
Compatible with Media Type
Non-Flammable Liquids
Priming
Manual
Discharge Rotation
90 Degrees Increments
Maximum Feet of Head
190 ft
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
82 psi
Flow Rate @ 100 ft of Head (Maximum)
183 gpm
Volute Material
316 Stainless Steel
Media Temperature - Minimum
40 Degrees F
Discharge Rotation Increments
0 Degrees
Includes
Manual
Discharge Orientation
Top
Number of Stages
1
Flow Rate (Minimum)
80 gpm
Shut Off Pressure - Maximum
82 psi
Feet of Head (Maximum)
190 ft
Motor Design
Three-Phase
Mounting Orientation
Horizontal
Drive Coupling Type
No Coupling
Shaft Seal Type
Mechanical
Ambient Temperature - Maximum
40 Degrees C
Inlet Orientation
Side
Full Load Current
24.2/12.2 A
Thermal Overload Protection
Yes
Discharge Position
Center
Media Temperature - Maximum
200 Degrees F
Flow Rate (Maximum)
195 gpm
Chemical Compatibility
Non-Flammable Liquids
Shaft Seal Material
Carbon/Ceramic, FKM
Case Pressure - Maximum
100 psi
Inlet Position
Center
Viscosity (Maximum)
100 SUS
Electrical Connection Type
Hardwired
Motor Speed - Maximum
3,450 RPM
Hazardous Location Class
Not Rated

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 10 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 80 ft of Head (Maximum) 195 gpm, Maximum Feet of Head 190 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 195 gpm, Flow Rate @ 100 ft of Head (Maximum) 183 gpm, Flow Rate @ 120 ft of Head (Maximum) 166 gpm
