  5. Stainless Steel 3 HP Centrifugal Pump 230V

This item is Discontinued.

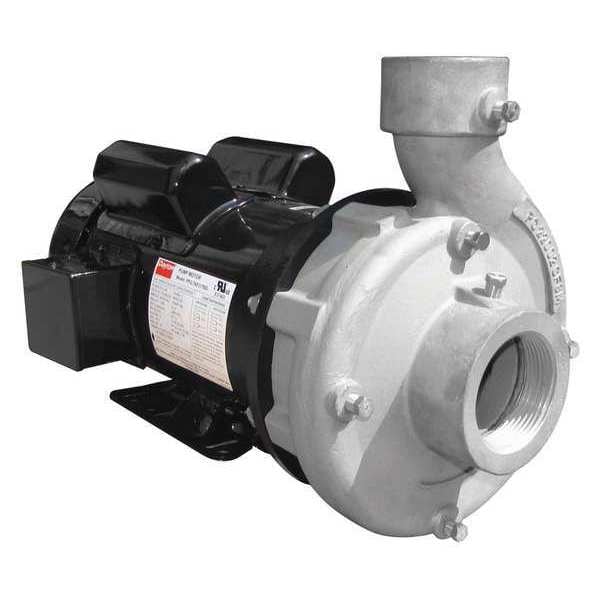

Dayton Stainless Steel 3 HP Centrifugal Pump 230V 4ZA51

Stainless Steel 3 HP Centrifugal Pump 230V (Discontinued)

  • Mfr # 4ZA51
  • Zoro # G0350271
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4ZA51
Zoro #
G0350271
UPC #
190735341155
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Length
16 1/4 in
Manufacturers Warranty Length
1 yr
Height
12 in
Max. Dia. Solids
13/32 in
Width
9 3/8 in
Overall Height
12 in
Overall Width
10.1 in
Overall Length
17.9 in
Compatible Discharge Pipe Size
2 in
Compatible Intake Pipe Size
2 1/2 in
Solid Diameter (Maximum)
0.41 in

Details

Discharge Pump Type
Straight Center Discharge Pump
HP - Pumps
3 hp
Phase - Pumps
1
Voltage - Pumps
240V AC
Max. Pressure - Pumps
38 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head
100 to 160 gpm @ 78 to 60 ft.
Phase
Single
Max. Pressure
38 psi
Max. Head
87 ft
Motor RPM
3,500 RPM
Hz
60
Duty
Continuous
Bearing Type
Ball
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Amps
12.5
Max. Specific Gravity
1.0
GPM of Water @ 80 Ft. of Head
81.8
GPM of Water @ 30 Ft. of Head
209
GPM of Water @ 50 Ft. of Head
176
GPM of Water @ 40 Ft. of Head
194
Impeller Type
Enclosed
GPM of Water @ 70 Ft. of Head
128
Voltage
230
Impeller Material
Stainless Steel
HP
3
Motor Enclosure
Totally Enclosed Fan Cooled
Frame
56J
Port Rotation
4 Position Increments
Max. Liquid Temp.
40 Degrees to 200 Degrees F
GPM of Water @ 60 Ft. of Head
156
Housing Material
Stainless Steel
Outlet
2" NPT
Inlet Pressure
100 psi
Seal Material
Viton/Carbon/Ceramic
Inlet
2-1/2" NPT
Item
Straight Center Discharge Pump
Motor Type
Capacitor-Start
Maximum Media Temperature
200 Degrees F
Best Efficiency Flow
66 gpm
Feet of Head (Minimum)
30 ft
Compatible with Media Type
Non-Flammable Liquids
Priming
Manual
Flow Rate @ 50 ft of Head (Maximum)
165 gpm
Intake Type
NPT
Impeller Design
Closed
Flow Rate @ 70 ft of Head (Maximum)
128 gpm
Maximum Feet of Head
70 ft
Specific Gravity (Maximum)
1
Pump Housing Material
Stainless Steel
Shaft Material
410 Stainless Steel
Seal Type
Mechanical
Maximum RPM
3,500 RPM
Frequency
60 Hz
Flow Rate @ 80 ft of Head (Maximum)
8.6 gpm
Flow Rate @ 40 ft of Head (Maximum)
190 gpm
Flow Rate @ 60 ft of Head (Maximum)
140 gpm
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Shut Off Pressure (Maximum)
38 psi
Minimum Flow Rate
8.3 gpm
Horsepower
3 hp
Best Efficiency Head
70 ft
Pumping Application
Decorative Water, Dewatering, Irrigation, Liquid and Chemical Transfer
Flow Rate @ 30 ft of Head (Maximum)
210 gpm
Motor Frame Designation
56J
Duty Cycle
Continuous
Discharge Rotation
90 Degrees Increments
Discharge Type
NPT
Nameplate Voltage
230V AC
Maximum Flow Rate
210 gpm

Description

Straight Center Discharge Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 190 gpm, Flow Rate @ 60 ft of Head (Maximum) 140 gpm, Flow Rate @ 80 ft of Head (Maximum) 8.6 gpm, Maximum Feet of Head 70 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 210 gpm
