Shop DAYTON

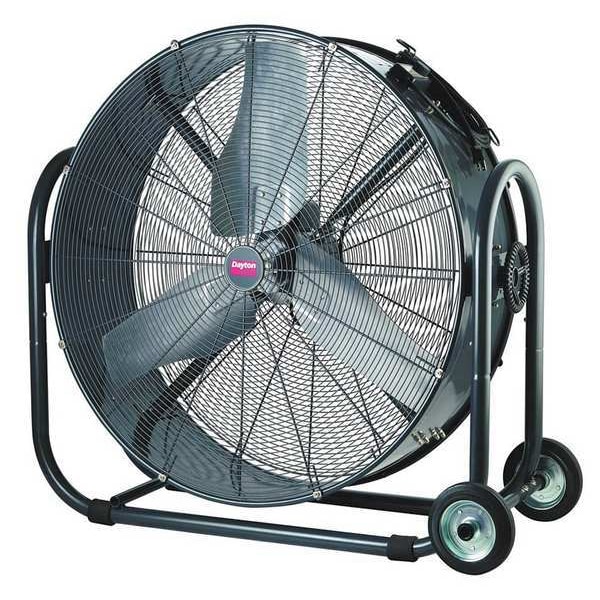

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 3,600/5,800 cfm, Non-Oscillating

  • Mfr # 1YNW3

  • Zoro # G3279017

product price:  $339.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/3 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YNW3
Zoro #
G3279017
UPC #
190735150450
Country of Origin
China

Dimensions

Blade Diameter
24 in
Width
34 1/4 in
Height
28 in
Shaft Dia.
5/8 in
Outside Dia.
26-1/2"
Max. Depth
17"
Wheel Dia.
7 in
Fan Cord Length
9 ft
Height Adjustment
Fixed
Depth
17 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/3 hp
Air Flow
3,600/5,800 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
70 dBA
Item
Portable Fan
Thermal Protection
Automatic Reset
CFM Low
3600
Motor Enclosure
Open Air Over
Bearing Type
Ball
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Watts
450/285 W
NEMA Plug Configuration
5-15P
Housing Material
Steel
CFM High
5800
Air Velocity @ 60 Ft.
45/10 fpm
Mobile/Stationary
Mobile
Fan Style
Standard
Hz
60 Hz
Air Velocity @ 40 Ft.
100/90 fpm
Motor RPM
850/700
Assembled
Yes
Motor Insulation
B
Motor Type
Permanent Split Capacitor
Max. Ambient Temp.
104 Degrees F
Fan Mounting Location
Floor
Number of Blades
3
Application
Spot Cooling and People Cooling
Environmental Applications
Industrial
Wire Guard Finish
Powder Coated
Air Velocity @ 20 Ft.
260/210 fpm
Guard Material
Steel
Number of Conductors
3
Fan Accessory Style
Standard
Standards
cULus
Assembly Required
Yes
Color
Gray
Fan Housing Material
Steel
Head Tilt Adjustment
360 Degrees
RPM
700 RPM, 850 RPM
Amps
3.9/2.6 A
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Material
Steel
Motor hp
1/3 hp
NEMA plug Configuration
5-15p
Number of Wheels
2
Guard Color
Gray
Bearing Protection
Sealed
Environment Rating
Dry
Fan Shape
Drum
Corrosion-Resistant
Yes
For Location
Manufacturing Plant
Housing Finish
Painted
Airflow
3,600 cfm, 5,800 cfm
High-Visibility
No
Removable Base
Permanently Lubricated

Description

Standard-Duty Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 5800, CFM Low 3600, Air Velocity @ 20 Ft. 260/210 fpm, Motor HP 1/3 hp, Motor RPM 850/700, Operating Amps 3.9/2.6, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 850/700, Sound Level 70 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 450/285, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 26-1/2 In., Height 28 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
