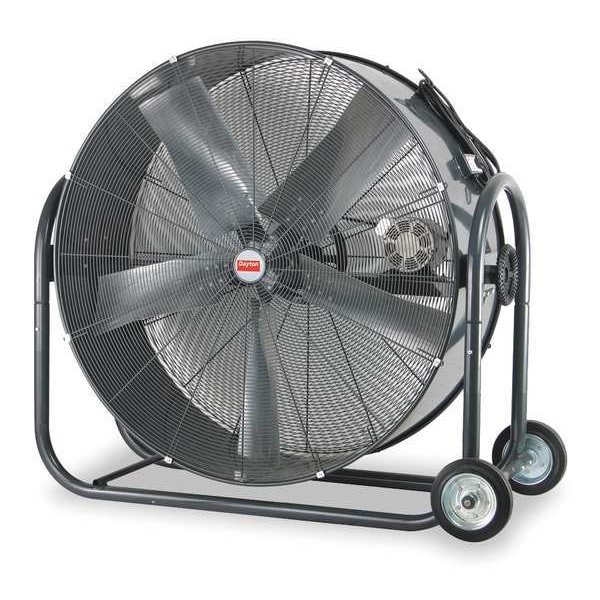

Dayton Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 9000/14,000 cfm, Non-Oscillating 1YNW7 - main
Shop DAYTON

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 9000/14,000 cfm, Non-Oscillating

  • Mfr # 1YNW7

  • Zoro # G1087441

product price:  $698.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1YNW7
Zoro #
G1087441
UPC #
190735150498
Country of Origin
China

Dimensions

Blade Diameter
36 in
Height
42 in
Max. Depth
23 in
Shaft Dia.
25 mm
Outside Dia.
38 in
Width
46 in
Depth
23 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height
Wheel Dia.
7 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1
Air Flow
9000/14,000 cfm
Drive Type
Belt Drive
Blade Material
Aluminum
Sound Level
76 dBA
Item
Air Circulator
Guard Material
Steel
Assembled
Partially Assembled
Housing Material
Steel
Fan Style
Standard Duty
Motor RPM
480/330 RPM
Standards
cULus Listed
CFM Low
9000
Environmental Applications
Industrial
Air Velocity @ 60 Ft.
60/40 fpm
Fan Mounting Location
Floor
CFM High
14000
Watts
900/600
Mobile/Stationary
Mobile
Max. Ambient Temp.
104 Degrees F
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Number of Blades
5
Air Velocity @ 20 Ft.
230/140 fpm
Motor Enclosure
Open Air Over
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
Hz
60 Hz
Fan Accessory Style
Standard
NEMA Plug Configuration
5-15P
Thermal Protection
Automatic Reset
Application
Spot Cooling and People Cooling
Bearing Type
Ball
Number of Conductors
3
Wire Guard Finish
Polyester Powder Coated Dark Gray
Air Velocity @ 40 Ft.
130/40 fpm
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
RPM
1100/800
Amps
7.9/6.0
Fan Housing Material
Steel
Assembly Required
Yes
Head Tilt Adjustment
360 Degrees
Color
Dark Gray
Material
Steel
Motor hp
1 hp
NEMA plug Configuration
5-15p

Description

Portable Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 36 in, Non-Oscillating, Fan Cord Length 9 ft, 900/600 W Watts, 800 RPM, 1,100 RPM RPM, Number of Blades 5, 7.9/6 A Amps, Height 42 in, Width 46 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Gray, cULus, 7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
