Shop DAYTON

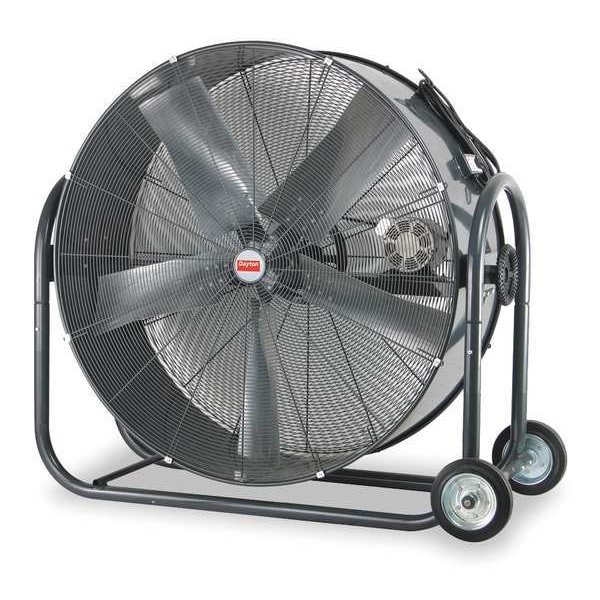

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 9000/14,000 cfm, Non-Oscillating

  • Mfr # 1YNW7

  • Zoro # G1087441

product price:
$
665.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YNW7
Zoro #
G1087441
UPC #
190735150498
Country of Origin
China

Dimensions

Blade Diameter
36 in
Height
42 in
Max. Depth
23"
Shaft Dia.
11/16 in
Outside Dia.
38"
Width
46 in
Depth
23 in
Fan Cord Length
9 ft
Height Adjustment
Fixed
Wheel Dia.
7 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1 hp
Air Flow
9,000/14,000 cfm
Drive Type
Belt Drive
Blade Material
Aluminum
Sound Level
76 dBA
Item
Portable Fan
Guard Material
Steel
Assembled
Partially Assembled
Housing Material
Steel
Fan Style
Standard
Motor RPM
1100/800
Standards
cULus
CFM Low
9000
Environmental Applications
Industrial
Air Velocity @ 60 Ft.
60/40 fpm
Fan Mounting Location
Floor
CFM High
14,000
Watts
900/600 W
Mobile/Stationary
Mobile
Max. Ambient Temp.
104 Degrees F
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Number of Blades
5
Air Velocity @ 20 Ft.
230/140 fpm
Motor Enclosure
Open Air Over
Motor Insulation
B
Motor Type
Permanent Split Capacitor
Hz
60 Hz
Fan Accessory Style
Standard
NEMA Plug Configuration
5-15P
Thermal Protection
Automatic Reset
Application
Spot Cooling and People Cooling
Bearing Type
Ball
Number of Conductors
3
Wire Guard Finish
Powder Coated
Air Velocity @ 40 Ft.
130/40 fpm
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
RPM
800 RPM, 1,100 RPM
Amps
7.9/6 A
Fan Housing Material
Steel
Assembly Required
Yes
Head Tilt Adjustment
360 Degrees
Color
Gray
Material
Steel
Motor hp
1 hp
NEMA plug Configuration
5-15p
Bearing Protection
Sealed
Removable Base
Permanently Lubricated
Fan Shape
Drum
Corrosion-Resistant
Yes
For Location
Manufacturing Plant
Number of Wheels
2
Environment Rating
Dry
Housing Finish
Painted
Guard Color
Gray
Airflow
9,000 cfm, 14,000 cfm
High-Visibility
No

Description

Portable Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 36 in, Non-Oscillating, Fan Cord Length 9 ft, 900/600 W Watts, 800 RPM, 1,100 RPM RPM, Number of Blades 5, 7.9/6 A Amps, Height 42 in, Width 46 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Gray, cULus, 7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
