  5. Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 10,000/18,000 cfm

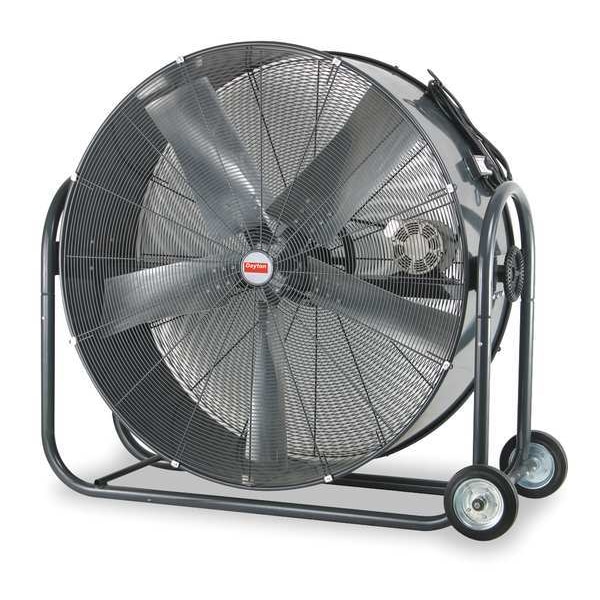

Dayton Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 10,000/18,000 cfm 1YNW8 - main

Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 10,000/18,000 cfm

  • Mfr # 1YNW8

  • Zoro # G1158087

product price:  $1,077.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YNW8
Zoro #
G1158087
UPC #
190735150504
Country of Origin
China

Dimensions

Blade Diameter
42 in
Height
47-5/16 in
Outside Dia.
43-1/4 in
Shaft Dia.
17 mm
Width
51-1/16 in
Max. Depth
22-1/2 in
Depth
22 1/2 in
Wheel Dia.
7 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1
Air Flow
10,000/18,000 cfm
Drive Type
Belt Drive
Blade Material
Aluminum
Sound Level
73 dBA
Item
Air Circulator
Assembled
Partially Assembled
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Hz
60 Hz
CFM High
18000
Air Velocity @ 60 Ft.
50/05 fpm
Bearing Type
Ball
Motor RPM
360/260 RPM
Application
Spot Cooling and People Cooling
Fan Style
Standard Duty
Number of Blades
5
Watts
800/600
Air Velocity @ 40 Ft.
100/50 fpm
Motor Type
Permanent Split Capacitor
Guard Material
Steel
Wire Guard Finish
Polyester Powder Coated Dark Gray
NEMA Plug Configuration
5-15P
Air Velocity @ 20 Ft.
220/160 fpm
CFM Low
10000
Max. Ambient Temp.
104 Degrees F
Standards
cULus Listed
Housing Material
Steel
Fan Accessory Style
Standard
Thermal Protection
Automatic Reset
Motor Insulation
Class B
Number of Conductors
3
Mobile/Stationary
Mobile
Environmental Applications
Industrial
Motor Enclosure
Open Air Over
Fan Mounting Location
Floor
Wheel Material
Steel/Rubber
Fan Housing Material
Steel
Head Tilt Adjustment
360 Degrees
Color
Dark Gray
Assembly Required
Yes
Wheeled Base
Mobile
Amps
7.0/6.0
RPM
1100/800
Material
Steel
Motor hp
1 hp
NEMA plug Configuration
5-15p

Description

Standard-Duty Industrial Fan, Blade Dia. 42 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 18,000, CFM Low 10,000, Air Velocity @ 20 Ft. 220/160 fpm, Motor HP 1 hp, Motor RPM 1100/800, Operating Amps 7.0/6.0, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 360/260, Sound Level 73 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 800/600, Motor Type Permanent Split Capacitor, Drive Type Belt Drive, Outside Dia. 43-1/4 In., Height 47 5/16 in
