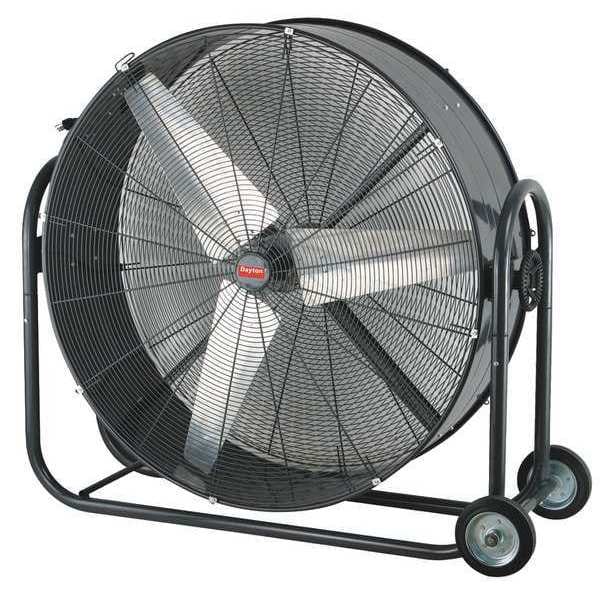

Dayton Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 9000/15,000 cfm, Non-Oscillating 1YNW6 - main
Shop DAYTON

Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 9000/15,000 cfm, Non-Oscillating

  • Mfr # 1YNW6

  • Zoro # G0475824

product price:  $1,203.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
42 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YNW6
Zoro #
G0475824
UPC #
190735150481
Country of Origin
China

Dimensions

Blade Diameter
42 in
Height
46-5/16 in
Max. Depth
20-1/4 in
Width
51-1/2 in
Outside Dia.
42-3/4 in
Shaft Dia.
5/8 in
Depth
20 1/4 in
Height Adjustment
Fixed Height
Wheel Dia.
7 in
Fan Cord Length
9 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
9000/15,000 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
75 dBA
Item
Air Circulator
Guard Material
Steel
NEMA Plug Configuration
5-15P
Wire Guard Finish
Polyester Powder Coated Dark Gray
CFM High
15000
Fan Mounting Location
Floor
Housing Material
Steel
Max. Ambient Temp.
104 Degrees F
Motor Insulation
Class B
Air Velocity @ 60 Ft.
230/80 fpm
CFM Low
9000
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Watts
592/499
Thermal Protection
Automatic Reset
Number of Conductors
3
Air Velocity @ 20 Ft.
480/370 fpm
Environmental Applications
Industrial
Motor Type
Permanent Split Capacitor
Standards
cULus Listed
Motor Enclosure
Totally Enclosed Air Over
Mobile/Stationary
Mobile
Hz
60 Hz
Fan Accessory Style
Standard
Number of Blades
3
Motor RPM
825/600 RPM
Air Velocity @ 40 Ft.
325/210 fpm
Application
Spot Cooling and People Cooling
Bearing Type
Ball
Assembled
Partially Assembled
Fan Style
Standard Duty
Amps
5.5/4.9
Wheeled Base
Mobile
Head Tilt Adjustment
360 Degrees
Fan Housing Material
Steel
Assembly Required
Yes
Color
Dark Gray
RPM
825/600
Wheel Material
Steel/Rubber
Material
Steel
Motor hp
1/2 hp
NEMA plug Configuration
5-15p

Description

Portable Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 42 in, Non-Oscillating, Fan Cord Length 9 ft, 592/499 W Watts, 600 RPM, 825 RPM RPM, Number of Blades 3, 5.5/4.9 A Amps, Height 46 5/16 in, Width 51 1/2 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Gray, cULus, 7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
