Shop JAN FAN

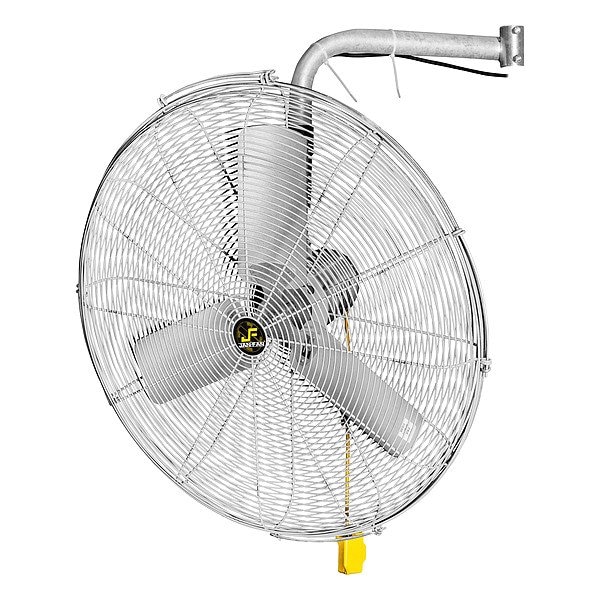

MountedFan, Yellow, 20inDia, Steel, 3Blade

  • Mfr # JF-BMF20-DCS-S

  • Zoro # G622586637

product price:
$
772.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Fan Power Source
Hardwired
Air Velocity @ 80 Ft.
100 fpm
Width
24 5/8 in
Number of Conductors
0
Thermal Protection
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JF-BMF20-DCS-S
Zoro #
G622586637
UPC #
-
Country of Origin
China

Dimensions

Width
24 5/8 in
Height
24 5/8 in
Blade Diameter
20 in
Fan Cord Length
18 ft
Depth
22 in
Shaft Dia.
1/2 in
Height Adjustment
78.3"

Details

Fan Power Source
Hardwired
Air Velocity @ 80 Ft.
100 fpm
Number of Conductors
0
Thermal Protection
Yes
Color
Silver
Motor Insulation
B
RPM
900 RPM, 1,100 RPM
Watts
200/300 W
Air Velocity @ 10 Ft.
175 fpm
Air Velocity @ 40 Ft.
150 fpm
Amps
2.4/1.2 A
Environmental Applications
Agricultural, Commercial, Industrial
Includes
Drop Cord Switch
Guard Material
Steel
Mount Type
Bracket
Wire Guard Finish
Powder Coated
Fan Blade Color
Yellow
Air Velocity @ 20 Ft.
175 fpm
Motor HP
1/4 hp
Motor Enclosure
Totally Enclosed Non-Ventilated
Number of Speeds
2
Blade Material
Steel
Features
Modular Design for Part Interchangeability, Positive Locking Guard with Quick-Release for Safe Access, Safety Cable for Over-Head Mounted Fans, Spring-Type Steel Blades with Front Hub
Head Tilt Adjustment
180 Degrees
Sound Level
60.2 dB
Assembly Required
Yes
Air Velocity @ 60 Ft.
100 fpm
Max. Ambient Temp.
104 Degrees F
Drive Type
Direct Drive
Mounting Surface
C-Channel, I-Beam
Hz
60/50 Hz
Voltage
115 V
Airflow
2,818 cfm
For Location
Garage, Fitness Center, Greenhouse, Manufacturing Plant, Warehouse
Standards
ETL
Item
Mounted Fan
NEMA Plug Configuration
5-15P
Number of Blades
3

Description

Mounted Fan, Non-Oscillating, Voltage 115 V, Air Velocity @ 20 Ft. 175 fpm, Motor HP 1/4 hp, Fan Mounting Location Ceiling, Floor, Wall, Sound Level 60.2 dB, Max. Ambient Temp. 104 Degrees F, Hz 60/50 Hz, Watts 200/300 W, Drive Type Direct Drive, Height 24 5/8 in, Width 24 5/8 in

Restrictions

This item has been restricted from sale in the following states: AK, HI
