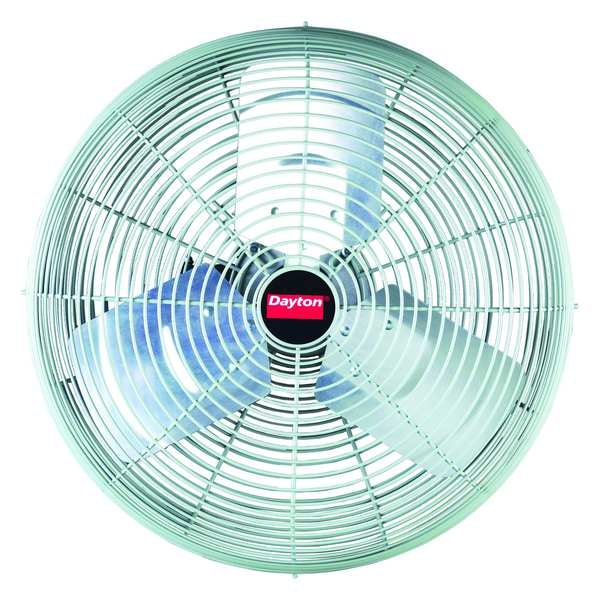

Dayton Standard Duty Industrial Fan, Phase 1 216NT4 - main

Standard Duty Industrial Fan, Phase 1

  • Mfr # 216NT4

  • Zoro # G8669322

product price: $508.99
/ea
Free Shipping & Returns

Key Features

Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
Voltage
115V AC
Number of Speeds
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
216NT4
Zoro #
G8669322
UPC #
190735148389
Country of Origin
China

Dimensions

Height
23 in
Depth
13 1/8 in
Blade Diameter
20 in
Base Dia.
27 in
Height Adjustment
41 1/2 in to 59 in
Width
23 in
Shaft Dia.
1/2 in

Details

Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
Voltage
115V AC
Number of Speeds
2
Number of Blades
3
Item
Standard-Duty Industrial Misting Fan
Air Velocity @ 20 Ft.
585/380 fpm
Bearing Type
Ball
Hz
60 Hz
Standards
UL, cUL, OSHA
Thermal Protection
Automatic Reset
Air Velocity @ 40 Ft.
150/100 fpm
Fan Mounting Location
Pedestal
Guard Material
Steel
Air Velocity @ 10 Ft.
910/600 fpm
Motor HP
1/4 hp
NEMA Plug Configuration
5-15P
Amps
1.4/2.0
Sound Level
72dBA
Includes
Air Circulator, Misting Hub Kit, Floor Pedestal
Watts
160/220
Wheeled Base
Stationary
Features
Mounting Bolts
Oscillation
Non-Oscillating
Color
Gray
Air Flow
3,080/4,750 cfm
Assembly Required
No
Motor Insulation
Class B
Motor Design
Permanent Split Capacitor
Environmental Applications
Industrial
Max. Ambient Temp.
104 Degrees F
Wire Guard Finish
Powder Coated

Description

Standard-Duty Industrial Misting Fan, Non-Oscillating, Voltage 115V AC, 1 Phase, Air Velocity @ 20 Ft. 585/380 fpm, Motor HP 1/4 hp, Fan Mounting Location Pedestal, Sound Level 72dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 160/220, Height 23 in, Width 23 in
