  5. Standard Duty Industrial Fan, Wall Mount, 24 in Blade Dia, 115V, 4,460/6,400 cfm, Oscillating

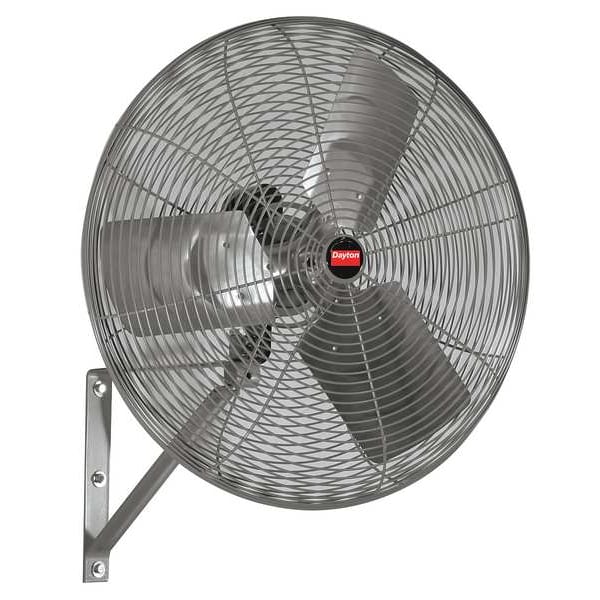

Dayton Standard Duty Industrial Fan, Wall Mount, 24 in Blade Dia, 115V, 4,460/6,400 cfm, Oscillating 7DD04 - main

Standard Duty Industrial Fan, Wall Mount, 24 in Blade Dia, 115V, 4,460/6,400 cfm, Oscillating

  • Mfr # 7DD04

  • Zoro # G2604828

product price:  $434.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7DD04
Zoro #
G2604828
UPC #
00194484317690
Country of Origin
China

Dimensions

Blade Diameter
24 in
Width
27 in
Shaft Dia.
1/2 in
Height
27 in
Outside Dia.
27 in
Max. Depth
16-3/4 in
Depth
16 3/4 in
Fan Cord Length
10 ft

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
4,460/6,400 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
74 dBA
Item
Industrial Fan
Application
Spot Cooling and People Cooling
Motor Enclosure
Totally Enclosed Air Over
Max. Ambient Temp.
104 Degrees F
Housing Material
Steel
Fan Style
Standard Duty
Mobile/Stationary
Stationary
Air Velocity @ 20 Ft.
410/325 fpm
Fan Accessory Style
Standard
Thermal Protection
Auto
Motor Type
Permanent Split Capacitor
Watts
429/353
Guard Material
Steel
Motor Insulation
Class B
Hz
60 Hz
Fan Mounting Location
Wall
Assembled
Yes
Includes
Mounting Bolts, Safety Support Cable, Assembly Hardware
Number of Blades
3
Wire Guard Finish
Gray Polyester Powder Coated
CFM Low
4460
CFM High
6400
Air Velocity @ 60 Ft.
80/60 fpm
Environmental Applications
Industrial
Standards
UL, cUL, OSHA
Air Velocity @ 40 Ft.
185/145 fpm
Air Velocity @ 10 Ft.
1,020/710 fpm
Bearing Type
Ball
Motor RPM
1,075/600 RPM
Assembly Required
No
Amps
4.65/3.31
RPM
1075/600
Fan Housing Material
Steel
Wheeled Base
Stationary
Material
Steel
Color
Gray
Motor hp
1/2 hp

Description

Mounted Fan, Blade Dia. 24 in, Stationary, Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 6400, CFM Low 4460, Air Velocity @ 20 Ft. 410/325 fpm, Motor HP 1/2 hp, Motor RPM 1075/750, Operating Amps 4.65/3.31, Fan Mounting Location Ceiling, Post, Wall, Fan Accessory Style Standard, Fan RPM 1075/600, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 429/353 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 27 in, Width 27 in
