Shop DAYTON

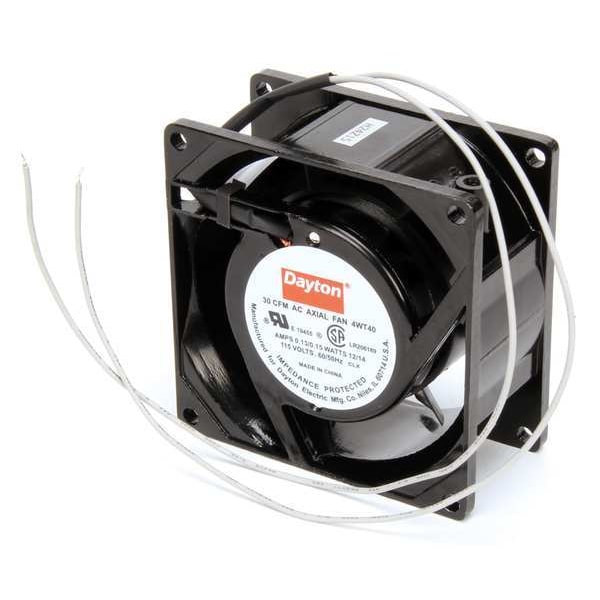

Standard Square Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 3 1/8 in W.

  • Mfr # 4WT40
  • Zoro # G0654525

product price:
$
27.19
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
36.5 cfm
Depth
1 1/2 in
Height
3 1/8 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4WT40
Zoro #
G0654525
UPC #
190735336878
Country of Origin
China
Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
36.5 cfm
Housing Material
Aluminum
Phase
1
Shape
Square
Watts
12/14 W
Voltage
115V AC
Fan Shape
Square
Motor Insulation
A
Standards
RU E19455 AND CSA LR206189
Motor Type
Shaded pole
Fan RPM
2750
Max. Ambient Temp.
158 Degrees F
Thermal Protection
Yes
Amps
0.13/0.15 A
Bearings
Sleeve
Electrical Connections
12" Leads
Fan dBA
35
Fan Voltage
115V AC
Electrical Connection - Fans
Lead Wires
Fan Item
Axial Fan
Housing Finish
Black Painted
Mounting Eye O.C.
2 13/16 in
Item
Axial Fan
Hz
60/50 Hz
Mounting Position
Horizontal
Mounting Eye O.C. - Fans
2-13/16"
dBA
35
Fan Watts
12.0
IP Rating
IP20
Bearing Type
Sleeve
Color
Black
Motor Design
Shaded Pole
Environmental Applications
Equipment Cooling
RPM
2,300 RPM, 2,750 RPM
Sound Level - Minimum
31 dBA
Includes Filter
No
Includes Guard
No
Environment Rating
Dry
Sound Level
35 dBA
Removable Base
Permanently Lubricated
Wire Color
Black

Dimensions

Depth
1 1/2 in
Height
3 1/8 in
Width
3 1/8 in
Fan Width
3-1/8"
Fan Height
3-1/8"
Fan Depth
1-1/2"
Fan Width
3-1/8"
Lead Length
13 in

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 1/2 in, Width 3 1/8 in, CFM @ 0.000-In. SP 36.5 cfm, Watts 12/14 W, Voltage 115V AC, 60/50 Hz Hz, 0.13/0.15 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 35/31, IP Rating IP20, Mounting Position Horizontal, Bearing Type Sleeve, 2750/2300 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
