Shop DAYTON

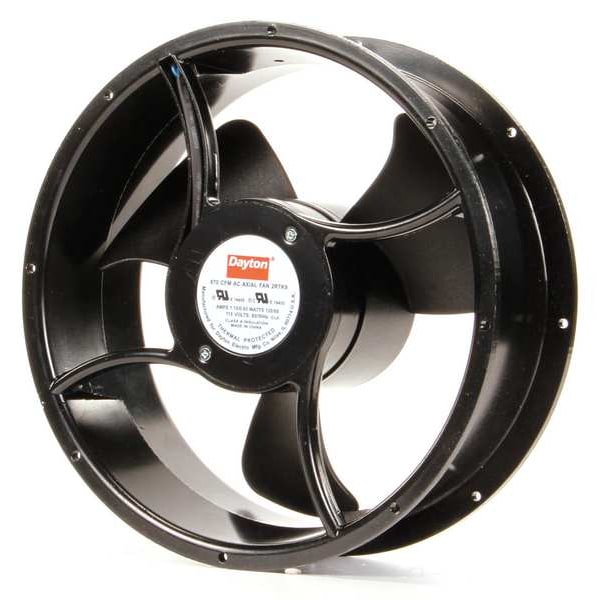

Standard Round Axial Fan, Round, 115V AC, 1 Phase, Aluminum, 10" W.

  • Mfr # 2RTK9

  • Zoro # G2176212

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
870 cfm
Depth
3 1/2 in
Housing Material
Aluminum
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2RTK9
Zoro #
G2176212
UPC #
190735230459
Country of Origin
China

Dimensions

Depth
3 1/2 in
Fan Depth
3-1/2"
Fan Dia.
10"
Diameter
10 in

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
870 cfm
Housing Material
Aluminum
Phase
1
Shape
Round
Watts
88/120 W
Voltage
115V AC
Bearings
Ball
Motor Type
PSC
Max. Ambient Temp.
158 Degrees F
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Housing Finish
Black
Electrical Connection - Fans
Terminals
Thermal Protection
Yes
Hz
60/50 Hz
dBA
70
Mounting Eye O.C. - Fans
9-11/16"
Amps
1.1/0.83 A
Item
Axial Fan
Mounting Eye O.C.
9 11/16 in
Electrical Connections
Terminals
Fan Item
Axial Fan
Requires
Cord Set (Not Included)
Fan RPM
2600/2900
Fan Watts
88.0/120.0
Fan Shape
Round
Motor Insulation
A
Fan dBA
68.0/70.0
Fan Voltage
115VAC
Mounting Position
Horizontal/Vertical
IP Rating
IP20
Environmental Applications
Equipment Cooling
RPM
2,600 RPM, 2,900 RPM
Color
Black
Bearing Type
Ball
Motor Design
Permanent Split Capacitor
Removable Base
Permanently Lubricated
Includes Filter
No
Includes Guard
No
Environment Rating
Dry
Sound Level - Minimum
68 dBA
Sound Level
70 dBA

Description

Standard Round Axial Fan, Fan Shape Round, Mounting Eye O.C. 9 11/16 in, Diameter 10 in, Depth 3 1/2 in, CFM @ 0.000-In. SP 870 cfm, Watts 88/120 W, Voltage 115V AC, 60/50 Hz Hz, 1.1/0.83 A Amps, Electrical Connection - Fans Terminals, Sound Level 70/68, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 2900/2600 RPM RPM, Motor Design PSC, Motor Insulation Class A, Thermal Protection Auto, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
