  5. Standard Square Axial Fan, Square, 12V DC, - Phase, 557 cfm

This item is Discontinued.

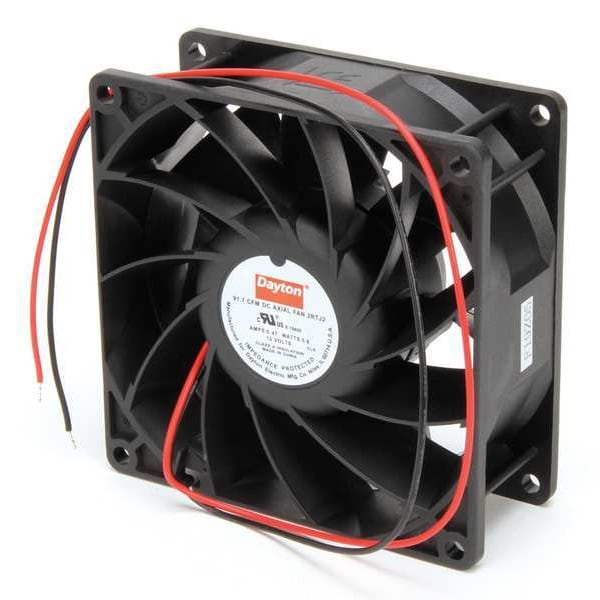

Dayton Standard Square Axial Fan, Square, 12V DC, - Phase, 557 cfm 2RTJ2

Standard Square Axial Fan, Square, 12V DC, - Phase, 557 cfm (Discontinued)

  • Mfr # 2RTJ2
  • Zoro # G0248351
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2RTJ2
Zoro #
G0248351
UPC #
190735230336
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 5/8 in
Width
3 5/8 in
Fan Width
3-5/8"
Fan Depth
1-1/2"
Fan Width
3-5/8"
Fan Height
3-5/8"

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
106 cfm
Housing Material
PBT Plastic
Shape
Square
Watts
5.6 W
Voltage
12V DC
Mounting Position
Vertical or Horizontal
Mounting Eye O.C. - Fans
3-1/4"
Max. Ambient Temp.
158 Degrees F
Fan Item
Axial Fan
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Fan Watts
5.6
Fan Shape
Square
Electrical Connections
12" Leads
Fan dBA
50.3
Motor Insulation
Class A
Thermal Protection
Impedance
Bearings
Ball
Item
Standard Square Axial Fan
Electrical Connection - Fans
Lead Wires
dBA
50.3
Fan RPM
3800
Housing Finish
Black Painted
Fan Voltage
12VDC
Mounting Eye O.C.
3 1/4 in
Amps
0.47 A
IP Rating
IP20
RPM
3800 RPM
Motor Design
Brushless DC
Environmental Applications
Equipment Cooling
Bearing Type
Ball
Color
Black

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 3 1/4 in, Height 3 5/8 in, Depth 1 1/2 in, Width 3 5/8 in, CFM @ 0.000-In. SP 106 cfm, Watts 5.6 W, Voltage 12V DC, - Hz, 0.47 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 50.3, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3800 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
