Shop DAYTON

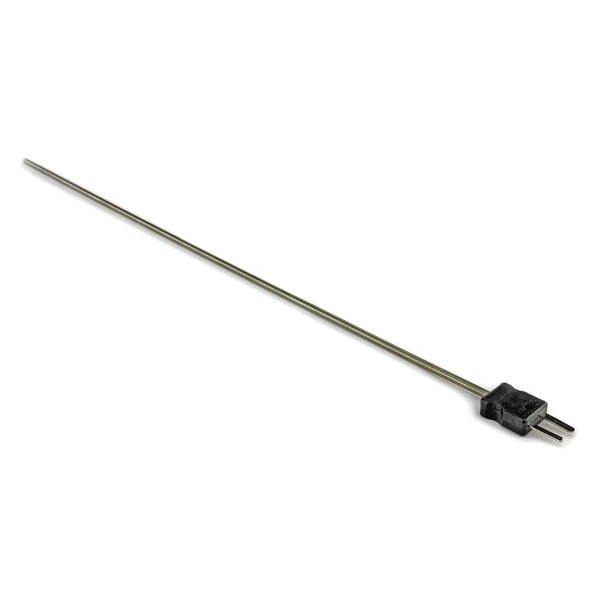

Thermocouple Probe, Mini Plug, Type J

  • Mfr # 36GK68
  • Zoro # G9760615
product price:
$
28.99
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650 Degrees F
Thermocouple Element
22 AWG
Probe Length
12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36GK68
Zoro #
G9760615
UPC #
190735274286
Country of Origin
United States

Dimensions

Probe Length
12 in
Sheath Size (In.)
0.125 in
Probe Tip Diameter
0.125 in
Probe Size
1/8 in x 12 in
Probe Diameter
0.125 in
Cable Length
12 in
Process Mounting Thread Size
1/8" MNPT

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650 Degrees F
Thermocouple Element
22 AWG
Material
304 Stainless Steel
Plug or Connector Type
Mini Plug
Standards
ANSI
Max. Pressure (PSI)
1,000 psi
Construction
Metal Insulated Cable
Insulation
Magnesium Oxide
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
For Solids
No
Maximum Temperature °F
2,193 Degrees F
Accuracy
+/-1.1 % Below 293 Degrees C, +/-0.4 % Otherwise
Response Time
0.5 sec
Fitting Type
Compression
Temperature Range
-346 Degrees to 1380 Degrees F/-210 Degrees to 748.88 Degrees C
For Surfaces
No
For Gases
Yes
Maximum Wire Gauge
20 AWG
Minimum Temperature °F
-346 Degrees F
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Head Material
304 Stainless Steel
Sensor Type
Thermocouple
Junction Type
Grounded
Maximum Temperature °C
748.88 Degrees C
Probe Bend
Straight
Includes Thermowell
No
For Air
Yes
For Application
Air, Gas, Liquid
Tip Style
Rounded
Minimum Temperature °C
-210 Degrees C
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
For Liquids and Gels
Yes
Probe Sheath Material
304 Stainless Steel
Connector Type
Mini Plug
Cable Material
Magnesium Oxide Insulation
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F
Maximum Temperature °C
1,200 Degrees C
Minimum Temperature °C
-210 Degrees C
Process Mounting Connection
Hose Clamp, Weld
Maximum Temperature (°F)
1,380 Degrees F
For Media Type
Gases, Liquids and Gels
Data Output Type
Serial Data Cable
Maximum Temperature (°C)
748.88 Degrees C

Description

Thermocouple Probe, Type J, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 12 in, Cable Length 12 in, -346 Degrees to 1380 Degrees F/-210 Degrees to 748.88 Degrees C, Thermocouple
