Shop DAYTON

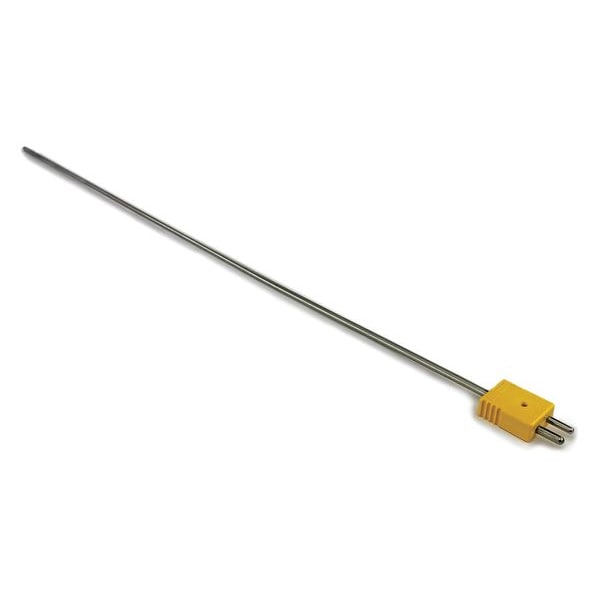

ThermocoupleProbe, StandardPlug, TypeK

  • Mfr # 36GL06
  • Zoro # G9760247
product price:
$
58.59
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150 Degrees F
Thermocouple Element
19 AWG
Probe Length
24 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36GL06
Zoro #
G9760247
UPC #
190735274651
Country of Origin
United States

Dimensions

Probe Length
24 in
Sheath Size (In.)
0.188 in
Probe Diameter
0.188 in
Probe Size
3/16 in x 24 in
Probe Tip Diameter
0.188 in
Cable Length
24 in
Process Mounting Thread Size
1/8" MNPT

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150 Degrees F
Thermocouple Element
19 AWG
Material
Inconel 600
Plug or Connector Type
Standard Plug
Construction
Metal Insulated Cable
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Insulation
Magnesium Oxide
Max. Pressure (PSI)
1,000 psi
Standards
ANSI
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
For Air
Yes
Accuracy
+/-1.1 % Below 293 Degrees C, +/-0.4 % Otherwise
Maximum Wire Gauge
20 AWG
Minimum Temperature °C
-200 Degrees C
For Gases
Yes
Response Time
1 sec
For Liquids and Gels
Yes
For Surfaces
No
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Tip Style
Rounded
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Includes Thermowell
No
Maximum Temperature °C
1,250 Degrees C
Maximum Temperature °F
2,280 Degrees F
Probe Sheath Material
Inconel
For Application
Air, Gas, Liquid
Connector Type
Standard Plug
Sensor Type
Thermocouple
Head Material
Inconel
For Solids
No
Temperature Range
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
Minimum Temperature °F
-325 Degrees F
Probe Bend
Straight
Fitting Type
Compression
Cable Material
Magnesium Oxide Insulation
Junction Type
Grounded
Minimum Temperature °F
-325 Degrees F
Maximum Temperature °F
2,280 Degrees F
Maximum Temperature °C
1,250 Degrees C
Minimum Temperature °C
-200 Degrees C
Maximum Temperature (°F)
2,280 Degrees F
For Media Type
Gases, Liquids and Gels
Process Mounting Connection
Hose Clamp, Weld
Maximum Temperature (°C)
1,250 Degrees C
Data Output Type
Serial Data Cable

Description

Thermocouple Probe, Type K, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 24 in, Cable Length 24 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
