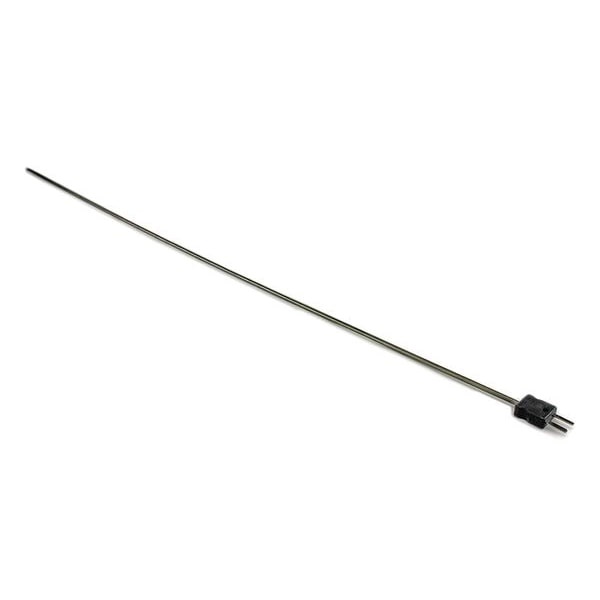

Dayton Thermocouple Probe, Mini Plug, Type J 36GK76 - main

Thermocouple Probe, Mini Plug, Type J

  • Mfr # 36GK76

  • Zoro # G9760536

product price: $39.39
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Probe Length
24 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GK76
Zoro #
G9760536
UPC #
190735274361
Country of Origin
United States

Dimensions

Probe Length
24 in
Sheath Size (In.)
0.125 in
Cable Length
24 in
Probe Diameter
0.125 in
Probe Tip Diameter
0.125 in
Probe Size
1/8 in x 24 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Material
304 Stainless Steel
Plug or Connector Type
Mini Plug
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Construction
Metal Insulated Cable
Standards
ANSI
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Insulation
Magnesium Oxide
Max. Pressure (PSI)
1,000 psi
Minimum Temperature °F
-346 Degrees F
Cable Material
Magnesium Oxide Insulation
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Maximum Temperature °F
2,193 Degrees F
Junction Type
Ungrounded
For Application
Air, Gas, Liquid
Head Material
304 Stainless Steel
Probe Bend
Straight
Response Time
1.1 sec
Includes Thermowell
No
Probe Sheath Material
304 Stainless Steel
Maximum Temperature °C
1,200 Degrees C
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Maximum Wire Gauge
20 AWG
Fitting Type
Compression
Connector Type
Mini Plug
For Air
Yes
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
For Gases
Yes
Minimum Temperature °C
-210 Degrees C
Sensor Type
Thermocouple
For Liquids and Gels
Yes
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
For Surfaces
No
For Solids
No
Tip Style
Rounded
Minimum Temperature °F
-346 Degrees F
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °C
1,200 Degrees C

Description

Thermocouple Probe, Type J, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 24 in, Cable Length 24 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
