Shop TELEMECANIQUE SENSORS

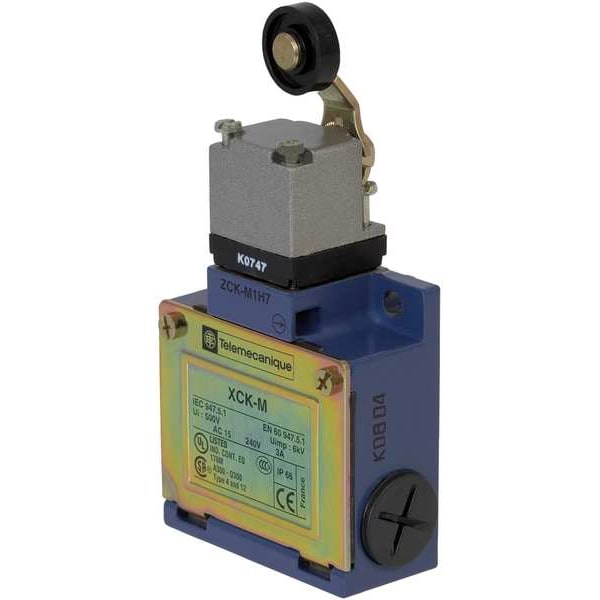

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKM115H7

  • Zoro # G2320166

product price:
$
136.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKM115H7
Zoro #
G2320166
UPC #
785901187615
Country of Origin
France

Dimensions

Roller Dia.
0.75 in
Width
2.52"
Body Depth - Limit Switch
1.18 in
Height
2.50"
Actuator Length
1.36"
Depth
1.18"
Actuator Length - Limit Switch
1.36 in
Body Width - Limit Switch
2.52 in
Roller Width
0.22 in
Body Height - Limit Switch
2.48 in
Overall Height
2.52 in
Body Height
2.48 in
Body Depth
1.18 in
Mounting Hole Diameter
0.2 in
Overall Depth
1.18 in
Roller Diameter
0.75 in
Manufacturer Warranty Length
18 mo
Overall Width
2.52 in
Body Width
2.52 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Rotary, Roller Lever
Electrical Connection
Screw Terminal
Mounting Hole - Limit Switch
(2) 0.20 in dia
Standards
CE, CSA, UL Listed
Stem Thread - Limit Switch
No Stem
Operating Force
0.89 in-lb
IP Rating
IP66
Travel
Total Travel 70 Degrees
Body Material
Zamak
Limit Switch Style
General Purpose Limit Switch
Actuator Location (Limit Switch)
Side
Mounting Hole Spacing - Limit Switch
1.61 in
Boot Sealed Actuator (Limit Switch)
No
Roller Material
Thermoplastic
Boot Sealed Actuator - Limit Switch
No
Contact Form
1NO/1NC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Arm Material
Zinc
Basic Actuator Style (Limit Switch)
Rotary
Movement
CCW, CW
Wiring Entry
1/2 in NPT
Amps
10
DC Contact Rating
0.27 A @ 250 V
NEMA Rating
1, 12, 13, 2, 4
AC Contact Rating
3 A @ 240 V
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Series
XCKM
Actuator Location
Side
Body Style (Limit Switch)
Miniature
Actuator Style
Roller Lever Plunger
Voltage Rating
240VAC/DC
Contact Form - Limit Switch
1NC/1NO
Special Features
lateral approach, 2 directions
Certification
CSA || CCC || UL
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
15000000 cycles
Head Type
rotary head
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Actuation Type
by 30° cam
Contact Action
snap action
Short Circuit Protection
10 A cartridge fuse gG
Min. Actuation Velocity Horizontal
1.5 m/s
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Mounting Style
Surface
Operating Torque - Maximum
0.89 in-lb
Total Travel
70 Degrees
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 13, 2, 4
Boot Sealed Actuator
No Boot Included
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
41 mm
Directional Movement
CCW/CW

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.36 in, Body Height - Limit Switch 2.48 in, Body Width - Limit Switch 2.52 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4
