  13. ThermocoupleProbe, StandardPlug, TypeJ

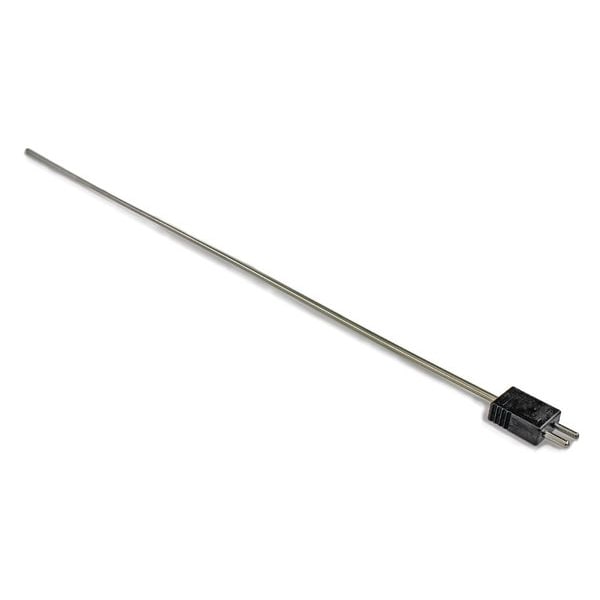

Dayton ThermocoupleProbe, StandardPlug, TypeJ 36GL07 - main

ThermocoupleProbe, StandardPlug, TypeJ

  • Mfr # 36GL07

  • Zoro # G9760231

product price: $60.49
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
19 AWG
Probe Length
24 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GL07
Zoro #
G9760231
UPC #
190735274668
Country of Origin
United States

Dimensions

Probe Length
24 in
Sheath Size (In.)
0.188 in
Probe Size
3/16 in x 24 in
Probe Tip Diameter
0.188 in
Cable Length
24 in
Probe Diameter
0.188 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
19 AWG
Material
304 Stainless Steel
Plug or Connector Type
Standard Plug
Construction
Metal Insulated Cable
Standards
ANSI
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Max. Pressure (PSI)
1,000 psi
Insulation
Magnesium Oxide
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Cable Material
Magnesium Oxide Insulation
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Sensor Type
Thermocouple
For Application
Air, Gas, Liquid
For Gases
Yes
Minimum Temperature °F
-346 Degrees F
Probe Sheath Material
304 Stainless Steel
Includes Thermowell
No
Tip Style
Rounded
Probe Bend
Straight
For Air
Yes
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
Fitting Type
Compression
Response Time
2.3 sec
Head Material
304 Stainless Steel
Minimum Temperature °C
-210 Degrees C
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Connector Type
Standard Plug
Junction Type
Ungrounded
Maximum Wire Gauge
20 AWG
Maximum Temperature °C
1,200 Degrees C
Maximum Temperature °F
2,193 Degrees F
For Surfaces
No
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
For Liquids and Gels
Yes
For Solids
No
Maximum Temperature °C
1,200 Degrees C
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F

Description

Thermocouple Probe, Type J, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 24 in, Cable Length 24 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
