Shop DAYTON

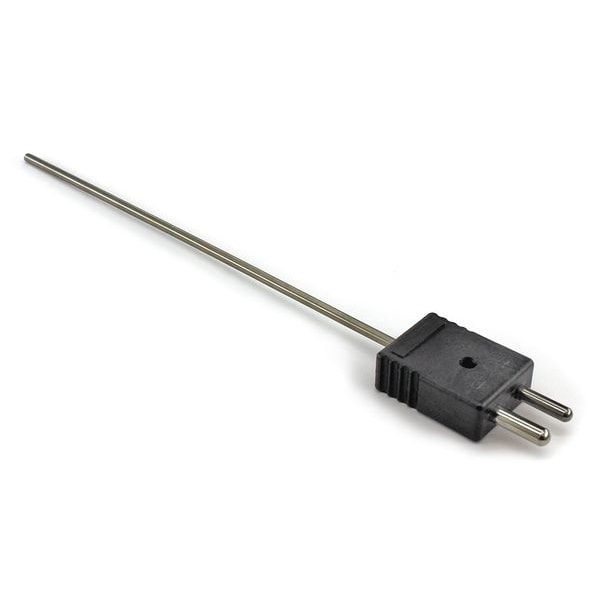

ThermocoupleProbe, StandardPlug, TypeJ

  • Mfr # 36GL11

  • Zoro # G0025536

product price:
$
29.59
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Probe Length
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36GL11
Zoro #
G0025536
UPC #
190735274705
Country of Origin
United States

Dimensions

Probe Length
6 in
Sheath Size (In.)
0.125 in
Probe Size
1/8 in x 6 in
Cable Length
6 in
Probe Tip Diameter
0.125 in
Probe Diameter
0.125 in
Process Mounting Thread Size
1/8" MNPT

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Material
304 Stainless Steel
Plug or Connector Type
Standard Plug
Max. Pressure (PSI)
1,000 psi
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Insulation
Magnesium Oxide
Standards
ANSI
Construction
Metal Insulated Cable
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Maximum Temperature °F
2,193 Degrees F
Cable Material
Magnesium Oxide Insulation
Response Time
1.1 sec
Tip Style
Rounded
Junction Type
Ungrounded
Fitting Type
Compression
For Application
Air, Gas, Liquid
Minimum Temperature °C
-210 Degrees C
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Maximum Wire Gauge
20 AWG
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
For Solids
No
Probe Bend
Straight
Probe Sheath Material
304 Stainless Steel
For Surfaces
No
Includes Thermowell
No
For Gases
Yes
Head Material
304 Stainless Steel
For Liquids and Gels
Yes
Maximum Temperature °C
1,200 Degrees C
Minimum Temperature °F
-346 Degrees F
Sensor Type
Thermocouple
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
For Air
Yes
Accuracy
+/-1.1 % Below 293 Degrees C, +/-0.4 % Otherwise
Connector Type
Standard Plug
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F
Maximum Temperature °C
1,200 Degrees C
Minimum Temperature °C
-210 Degrees C
Process Mounting Connection
Hose Clamp, Weld
Maximum Temperature (°F)
2,193 Degrees F
For Media Type
Gases, Liquids and Gels
Maximum Temperature (°C)
1,200 Degrees C
Data Output Type
Serial Data Cable

Description

Thermocouple Probe, Type J, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 1/8 in x 6 in, Cable Length 6 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
