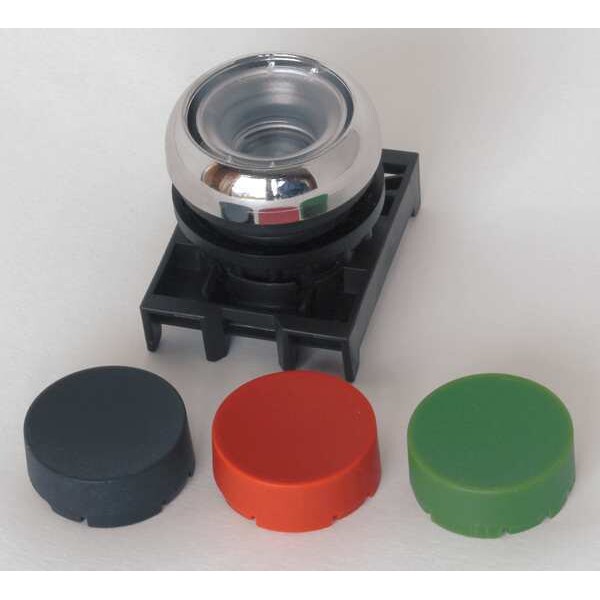

Push Button operator, 22 mm, Multi

Mfr # M22M-DH-X-SRG
Zoro # G6146856

18.39

Key Features

Push Button Style

Extended

Action

Momentary

Operator Illumination

Non-Illuminated

Panel Cutout Diameter

22 mm

Head Color

Black; Green; Red

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: M22M-DH-X-SRG
Zoro #: G6146856
UPC #: 786685898698
Country of Origin: Mexico

Dimensions

Panel Cutout Diameter: 22 mm
Size: 22 mm
Product Length/Depth: 7 in
Product Height: 1.5 in
Product Width: 5 in
Manufacturer Warranty Length: 1 yr
Overall Height: 1.5 in
Overall Depth: 7 in
Overall Width: 5 in

Details

Item: Push Button Operator
Push Button Style: Extended
Action: Momentary
Operator Illumination: Non-Illuminated
Head Color: Black; Green; Red
Head Material: Metal
Terminal Connection: Screw Clamp
Standards: Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Color: Multi
Basic Material: Metal
Type of Operator: Extended Button
NEMA Rating: 1, 13, 2, 3, 4, 4X
IP Rating: IP67, IP69K
Includes: Metal Bezel
Bezel Material: Metal
Bezel: Metal
Features: Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Number of Operators: 1
Series: M22
Lamp Type: LED
Type: Modular pushbutton
Compliances: CE Marked
Actuator: Buttonless
Illumination: Non-illuminated
Button color: Black, red, green
Certifications: CCC Marked
Operating mode: Momentary
Environmental rating: IP67, IP69K (IP66 key-release)
Product Name: Eaton M22 modular pushbutton
Operating Temperature - Minimum: -13 Degrees F
NEMA Enclosure Rating: 13, 4X
Number of Indicator Lights: 0
Hazardous Location Specification: Not Rated
Resistance Properties: Corrosion Resistant
Operator Material: Metal
Operating Temperature - Maximum: 158 Degrees F
Product Type: Push Button Operators

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Multi, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Metal Bezel, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
