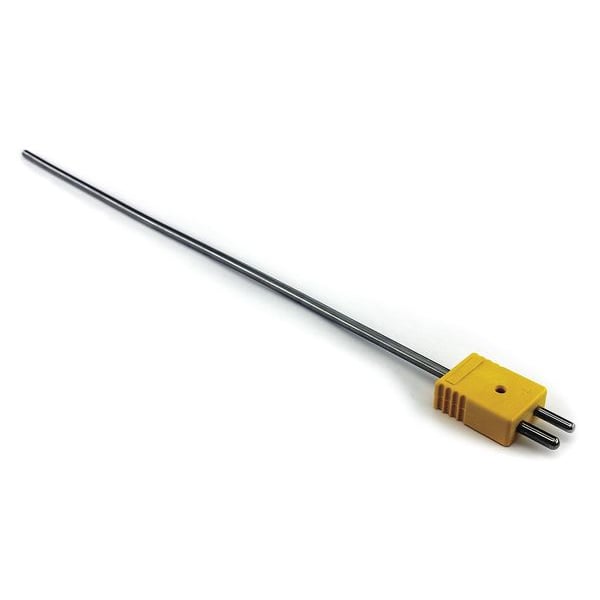

Dayton ThermocoupleProbe, StandardPlug, TypeK 36GK94 - main

ThermocoupleProbe, StandardPlug, TypeK

  • Mfr # 36GK94

  • Zoro # G9760353

product price: $37.29
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Probe Length
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GK94
Zoro #
G9760353
UPC #
190735274545
Country of Origin
United States

Dimensions

Probe Length
12 in
Sheath Size (In.)
0.188 in
Cable Length
12 in
Probe Diameter
0.188 in
Probe Size
3/16 in x 12 in
Probe Tip Diameter
0.188 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Material
Inconel 600
Plug or Connector Type
Standard Plug
Insulation
Magnesium Oxide
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Construction
Metal Insulated Cable
Standards
ANSI
Max. Pressure (PSI)
1,000 psi
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Maximum Temperature °C
1,250 Degrees C
For Liquids and Gels
Yes
For Surfaces
No
Connector Type
Standard Plug
For Gases
Yes
Includes Thermowell
No
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
Maximum Temperature °F
2,280 Degrees F
For Application
Air, Gas, Liquid
Probe Sheath Material
Inconel
Junction Type
Grounded
Cable Material
Magnesium Oxide Insulation
Head Material
Inconel
Minimum Temperature °F
-325 Degrees F
Probe Bend
Straight
For Solids
No
Maximum Wire Gauge
20 AWG
Sensor Type
Thermocouple
Temperature Range
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
Tip Style
Rounded
Minimum Temperature °C
-200 Degrees C
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Fitting Type
Compression
For Air
Yes
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Response Time
1 sec
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °F
2,280 Degrees F
Maximum Temperature °C
1,250 Degrees C
Minimum Temperature °F
-325 Degrees F

Description

Thermocouple Probe, Type K, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 12 in, Cable Length 12 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
