Shop DAYTON

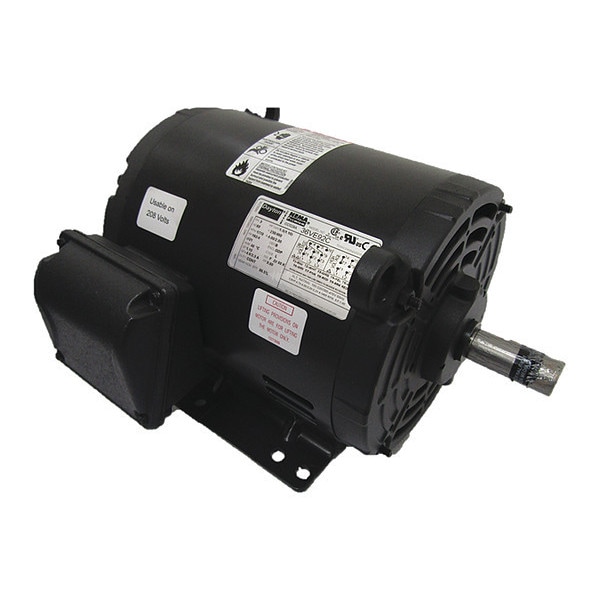

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 36VE92

  • Zoro # G0692268

product price:
$
608.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.1/2.0 A
Frame
182/4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VE92
Zoro #
G0692268
UPC #
190735275269
Country of Origin
Mexico
Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.1/2.0 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Footnotes
2,15,56
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Includes
Shaft Key
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Weight
27 7/32 kg
Bearing Type
Ball
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Variable Torque Rating
10:1
Number of Speeds
1
Bearing Protection Type
No Protection
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Full Load Current @ 60 Hz
4.0/2.0 A
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Permanently Lubricated
Conduit Box Location
Exterior
Frequency
60 Hz
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Product Type
General Purpose Motor
NEMA Design Class
B
Usable @ 200V
Not Usable at 200V

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1,770, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.1/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
