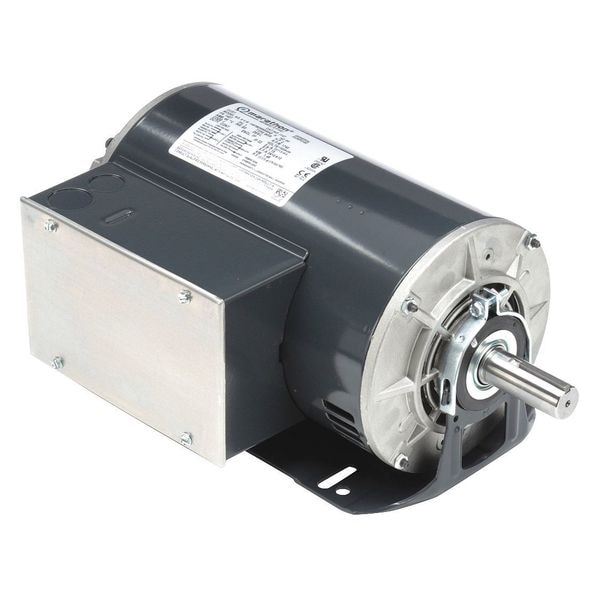

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame

  • Mfr # 145TBDR5345

  • Zoro # G8528886

product price:  $457.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
145TBDR5345
Zoro #
G8528886
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
11 15/16 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
14 1/4 in
Shaft Diameter
7/8 in
Frame Size
145T

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
145T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,740 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CE, CSA, UL Recognized
RPM Group
1701-1800
Nominal Efficiency
78.5 %
Duty
Continuous
Ins. Class
B
Frame Material
Steel
Hz
60 Hz
Phase
Single
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Full Load Amps
21.0/11.3-10.5 A
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Weight
50 lb
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Product Type
General Purpose Motor
Bearing Type
Ball
Manufacturers Warranty
1 yr
Insulation Class
B
Application
General Purpose
Frequency
60 Hz
Full Load Current @ 60 Hz
21.0/11.3-10.5 A
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 21.0/11.3-10.5 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
