Shop DAYTON

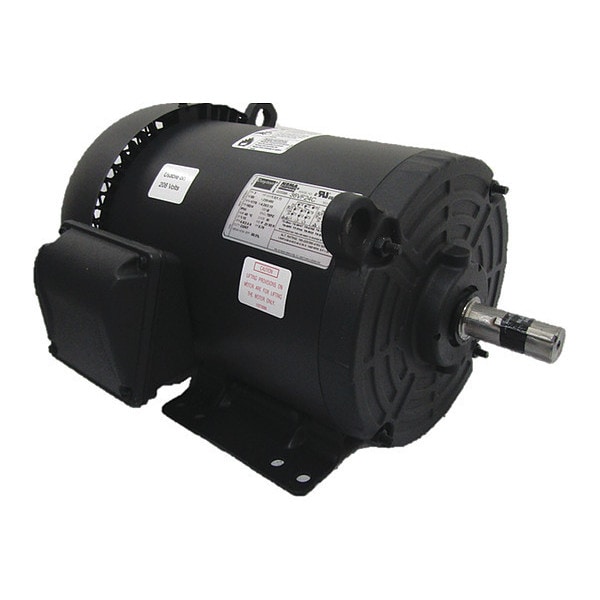

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 36VF24

  • Zoro # G0692225

product price:  $624.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.4/2.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF24
Zoro #
G0692225
UPC #
190735275566
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 5/8 in
Overall Length
15 7/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
182-4
Body Diameter
8.11 in
Shaft Diameter
7/8 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.4/2.2 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,15,53
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
Shaft Key
Capacitor Required
No
Duty Cycle
Continuous
Product Type
General Purpose Motor
Number of Speeds
1
NEMA Design Class
B
Application
General Purpose
Weight
29 17/32 kg
Bearing Type
Ball
Bearing Protection Type
Shaft Slingers
Constant Torque Rating
4:1
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Shaft Design
Keyed
Variable Torque Rating
10:1
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V
Frame Material
Steel
Inverter Rating
Inverter Rated
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
4.2/2.1 A
Usable @ 200V
Not Usable at 200V
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1765, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.4/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
