Shop DAYTON

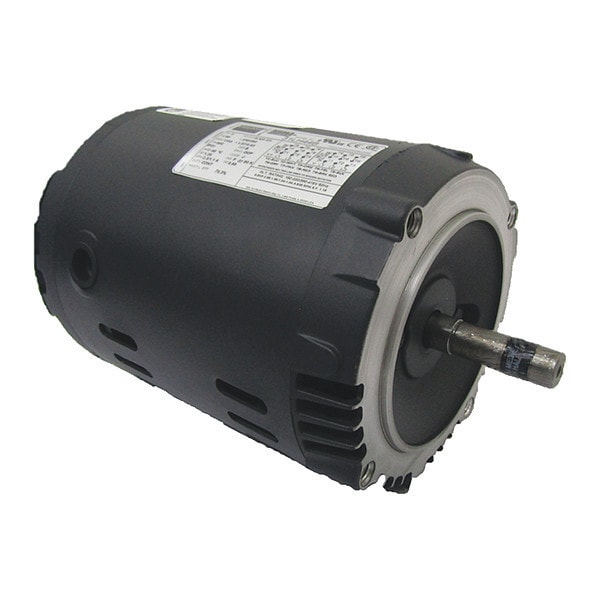

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 1,155 Nameplate RPM

  • Mfr # 31LH44

  • Zoro # G9096184

product price:  $249.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,155
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.0/0.99 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH44
Zoro #
G9096184
UPC #
190735255117
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 3/4 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Body Diameter
6.45 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
1,155
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.0/0.99 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
75.3 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Includes
Shaft Key
Footnotes
15,16
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Capacitor Required
No
Duty Cycle
Continuous
Product Type
General Purpose Motor
Bearing Type
Ball
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Inverter Rated
Frame Material
Steel
Manufacturers Warranty
1 yr
Insulation Class
F
Variable Torque Rating
1000:1
Bearing Protection Type
No Protection
Conduit Box Location
Interior
Efficiency Rating
NEMA Premium Efficiency
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
1.87/0.934 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.25
Weight
10 1/8 kg
Shaft Design
Keyed
Application
General Purpose
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,155, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.0/0.99 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.3 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
