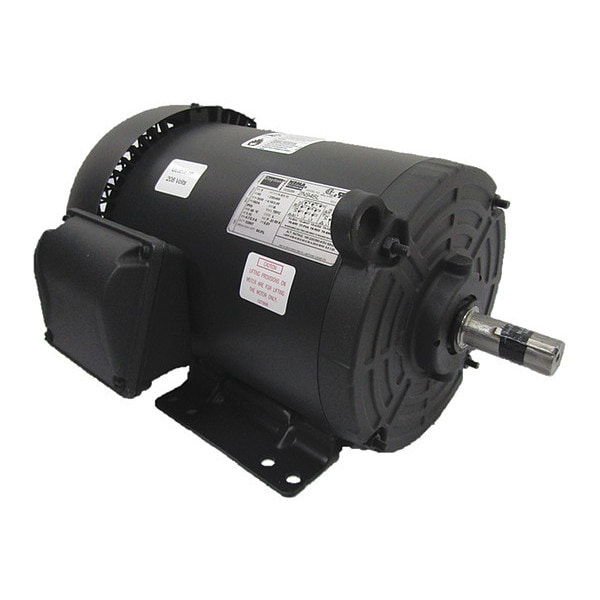

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3455 Nameplate RPM

  • Mfr # 2N946
  • Zoro # G1420334
product price:
$
736.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3455
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9/1.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N946
Zoro #
G1420334
UPC #
190735228265
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 9/16 in
Overall Length
15 1/4 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Frame Size
182-4
Shaft Diameter
7/8 in
Wire Rope Length
15 1/4 in
Length
15 1/4 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3455
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9/1.9 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Inverter Rated
Yes
Footnotes
2,10,15
Duty Cycle
Continuous
Insulation Class
F
Full Load Current @ 60 Hz
3.9/1.9 A
Number of Speeds
1
Frequency
60 Hz
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,455/1,465 RPM
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3455, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.9/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, UL
