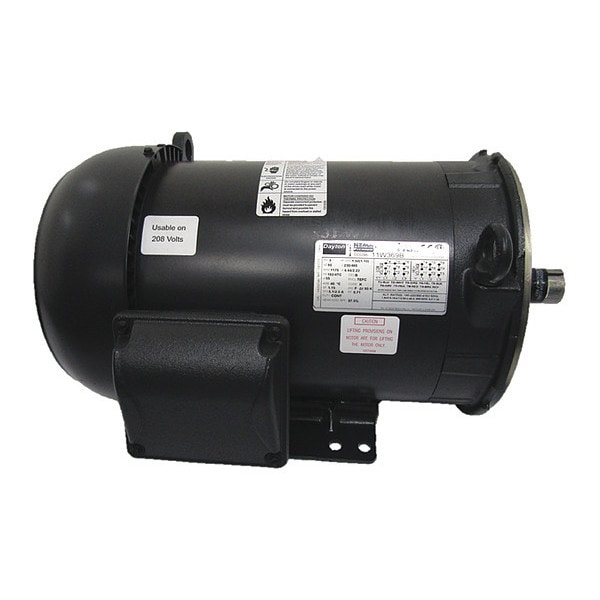

Three-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage, 1170 Nameplate RPM

  • Mfr # 11W369
  • Zoro # G4080273
product price:
$
835.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1170
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
4.4/2.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11W369
Zoro #
G4080273
UPC #
190735111291
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 15/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Body Diameter
8.11 in
Wire Rope Length
16 9/16 in
Bolt Circle Diameter
7 1/4 in
Shaft Diameter
1 1/8 in
Frame Size
182TC
Length
16 9/16 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1170
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
4.4/2.2 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Footnotes
2,10
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Bearing Protection Type
Shaft Slingers
Full Load Current @ 60 Hz
4.44/2.22 A
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Constant Torque Rating
4:1
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Frequency
60 Hz
Includes
Shaft Key
Bearing Lubrication Type
Permanently Lubricated
Weight
35 15/32 kg
Efficiency Rating
NEMA Premium Efficiency
Conduit Box Location
Exterior
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Variable Torque Rating
10:1
Application
General Purpose
Shaft Design
Keyed
Usable @ 200V
Not Usable at 200V
Manufacturers Warranty
1 yr
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1170, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.4/2.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
