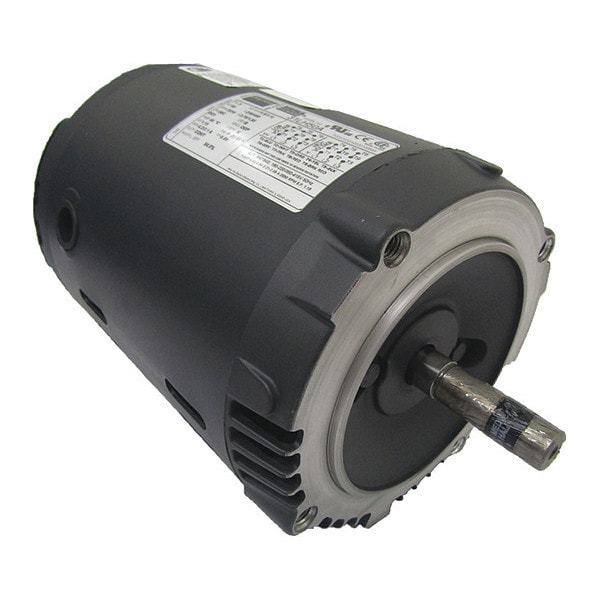

Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM
Mfr # 31LH50
Zoro # G9096245
product price: $317.99
/ea
Free Shipping & Returns
Key Features
HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.7/1.9 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
31LH50
Zoro #
G9096245
UPC #
190735255179
Country of Origin
Mexico
Dimensions
Length Less Shaft
9 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.7/1.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
