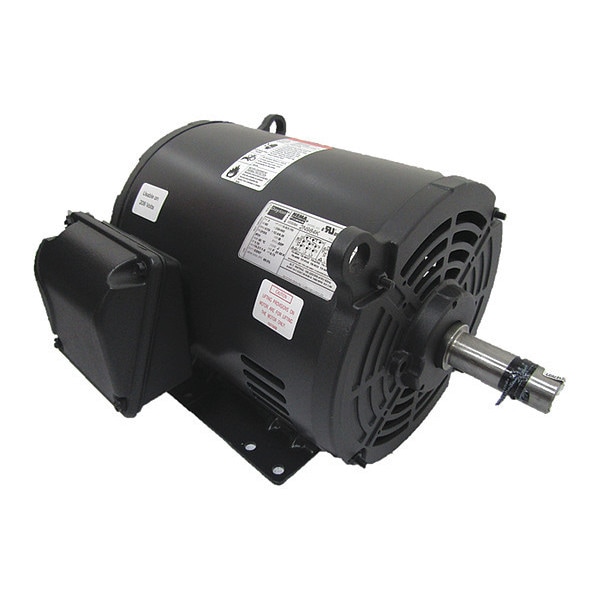

Three-Phase General Purpose Motor, 5 HP, 213/5 Frame, 230/460V AC Voltage, 1740 Nameplate RPM

  • Mfr # 2N984
  • Zoro # G2950333
product price:
$
978.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1740
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.7/6.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N984
Zoro #
G2950333
UPC #
190735228326
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 13/16 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 1/8 in
Wire Rope Length
16 13/16 in
Body Diameter
9.78 in
Frame Size
213-5
Length
16 13/16 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1740
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.7/6.4 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
2,10,15
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Insulation Class
F
Mounting Position
Horizontal
Conduit Box Location
Exterior
Number of Speeds
1
Bearing Type
Ball
Full Load Current @ 60 Hz
12.7 / 6.4 A
Bearing Protection Type
No Protection
Includes
Shaft Key
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Variable Torque Rating
10:1
Weight
49 9/16 kg
Product Type
General Purpose Motor
Frequency
60 Hz
Application
General Purpose

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1740, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.7/6.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
