Shop DAYTON

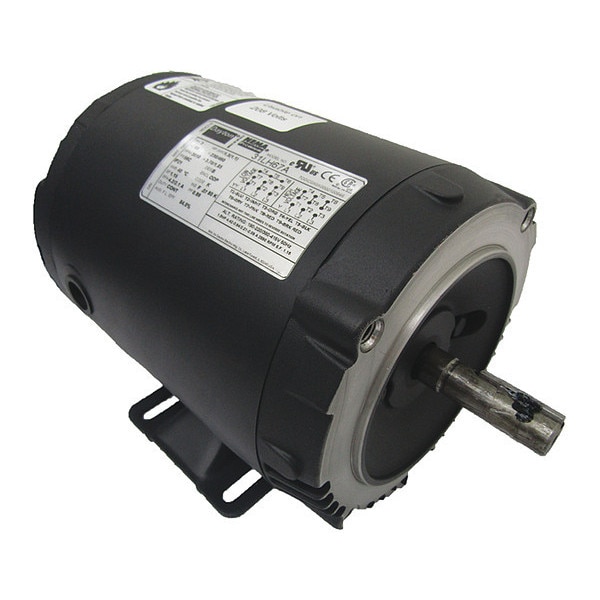

Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM

  • Mfr # 31LH67

  • Zoro # G9096412

product price:
$
304.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.7/1.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH67
Zoro #
G9096412
UPC #
190735255346
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 15/16 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Frame Size
56C
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
10 11/16 in
Length
10 11/16 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.7/1.9 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Motor Thermal Protection
None
Footnotes
15,16
Capacitor Required
No
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
3.7/1.85 A
Number of Speeds
1
Shaft Design
Keyed
Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Bearing Protection Type
No Protection
Conduit Box Location
Interior
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Inverter Rated
NEMA Design Class
B
Product Type
General Purpose Motor
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Usable @ 200V
Not Usable at 200V
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Weight
12 25/32 kg
Variable Torque Rating
1000:1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.7/1.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
