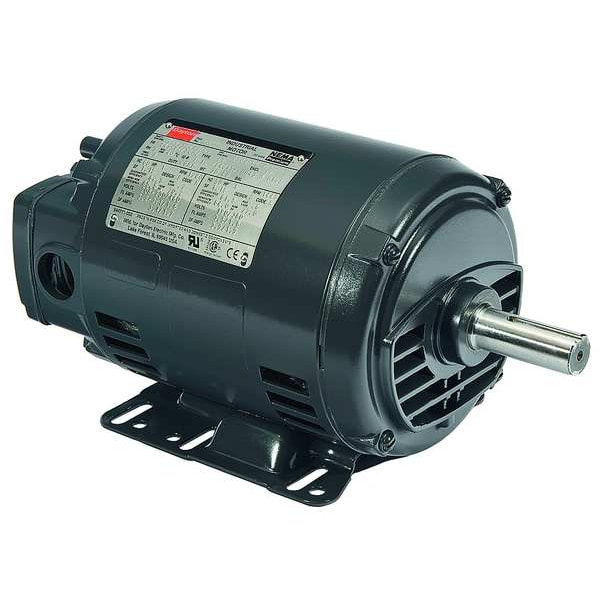

Dayton Three-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1165 Nameplate RPM 2NKX5 - main

Three-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1165 Nameplate RPM

  • Mfr # 2NKX5

  • Zoro # G2606265

product price:  $777.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.0/2.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2NKX5
Zoro #
G2606265
UPC #
190735228401
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/2 in
Overall Length
12 13/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Frame Size
143-5T/56HZ
Body Diameter
6.44 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.0/2.0 A
Frame
143-5T/56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Footnotes
5,10
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Duty Cycle
Continuous
Full Load Current @ 60 Hz
4.3/2.1 A
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
3 yr
Nameplate Voltage @ 50 Hz
190/380V AC
Motor Enclosure Type
Open Drip Proof
Product Type
General Purpose Motor
Full Load Current @ 50 Hz
2.5/4.9
Bearing Type
Ball
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Bearing Lubrication Type
Permanently Lubricated
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,435 RPM
NEMA Design Class
B
Usable @ 208V
Usable at 208V
Application
General Purpose
Number of Speeds
1
Weight
40 lb
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Keyed
Usable @ 200V
Usable at 200V
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60/50 Hz
Inverter Rating
Inverter Rated

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1165, Frame 143-5T/56HZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
