Shop DAYTON

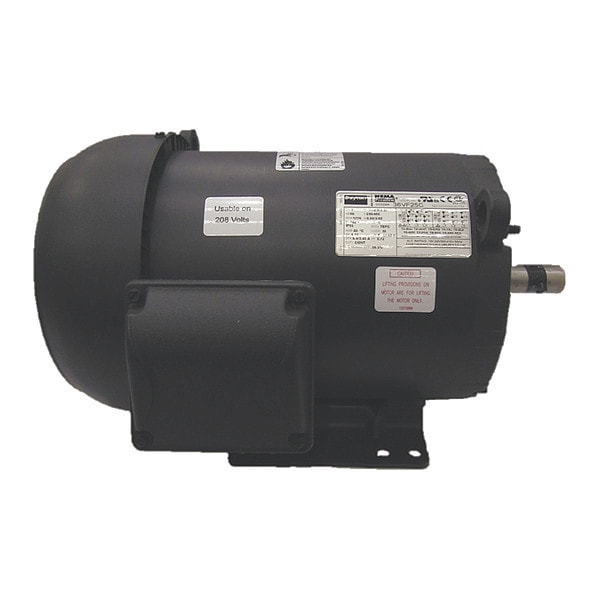

Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 36VF25

  • Zoro # G0692216

product price:
$
664.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF25
Zoro #
G0692216
UPC #
190735275573
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 5/8 in
Overall Length
15 7/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Body Diameter
8.11 in
Frame Size
182-4
Wire Rope Length
15 7/8 in
Length
15 7/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Motor Thermal Protection
None
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
2,15,53
Capacitor Required
No
Duty Cycle
Continuous
NEMA Design Class
B
Bearing Type
Ball
Manufacturers Warranty
1 yr
Insulation Class
F
Product Type
General Purpose Motor
Frame Material
Steel
Application
General Purpose
Variable Torque Rating
10:1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Bearing Protection Type
Shaft Slingers
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Bearing Lubrication Type
Permanently Lubricated
Efficiency Rating
NEMA Premium Efficiency
Constant Torque Rating
4:1
Weight
26 5/32 kg
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
6.0/3.0 A
Frequency
60 Hz
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1765, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Conduit Box
