Shop DAYTON

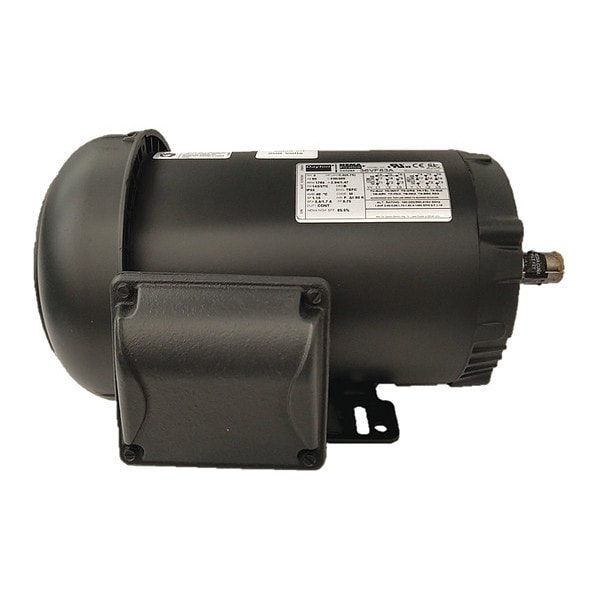

Three-Phase General Purpose Motor, 1 HP, 143/5TC Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 36VF83

  • Zoro # G1810971

product price:  $511.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.9/1.4 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF83
Zoro #
G1810971
UPC #
190735276150
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 3/8 in
Overall Length
13 5/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Body Diameter
6.45 in
Frame Size
143-5TC
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.9/1.4 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Footnotes
2, 15, 55
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Permanently Lubricated
Constant Torque Rating
4:1
Full Load Current @ 60 Hz
2.94/1.47 A
Variable Torque Rating
10:1
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Usable @ 200V
Not Usable at 200V
Bearing Type
Ball
Application
General Purpose
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Insulation Class
F
Weight
17 31/32 kg
NEMA Design Class
B
Bearing Protection Type
Shaft Slingers
Frequency
60 Hz
Conduit Box Location
Exterior
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1765, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.9/1.4 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
