Shop DAYTON

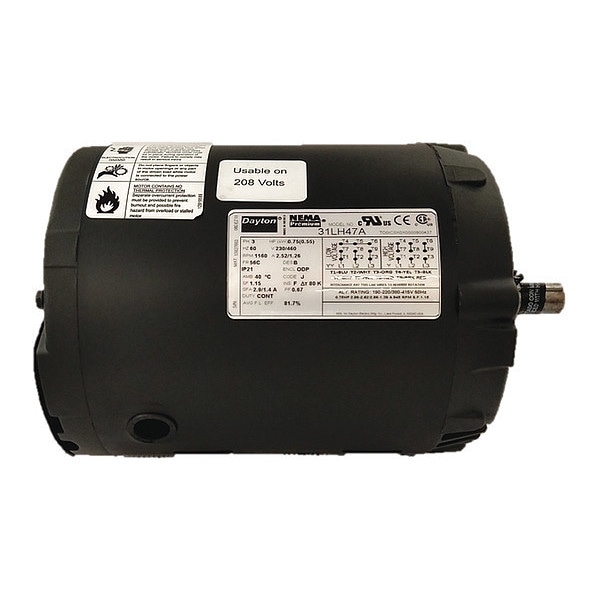

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1150 Nameplate RPM

  • Mfr # 31LH47

  • Zoro # G9096211

product price:  $263.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1150
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH47
Zoro #
G9096211
UPC #
190735255148
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 15/16 in
Overall Length
12 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Frame Size
56C
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1150
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
77 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
15,16
Includes
Shaft Key
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Capacitor Required
No
Duty Cycle
Continuous
Bearing Protection Type
No Protection
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
NEMA Premium Efficiency
Weight
15 31/32 kg
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Insulation Class
F
Variable Torque Rating
10:1
Application
General Purpose
Usable @ 200V
Not Usable at 200V
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Conduit Box Location
Interior
Frame Material
Steel
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Number of Speeds
1
Bearing Lubrication Type
Permanently Lubricated
Shaft Design
Keyed
Full Load Current @ 60 Hz
2.9 / 1.4 A
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1150, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.6/1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
