Shop DAYTON

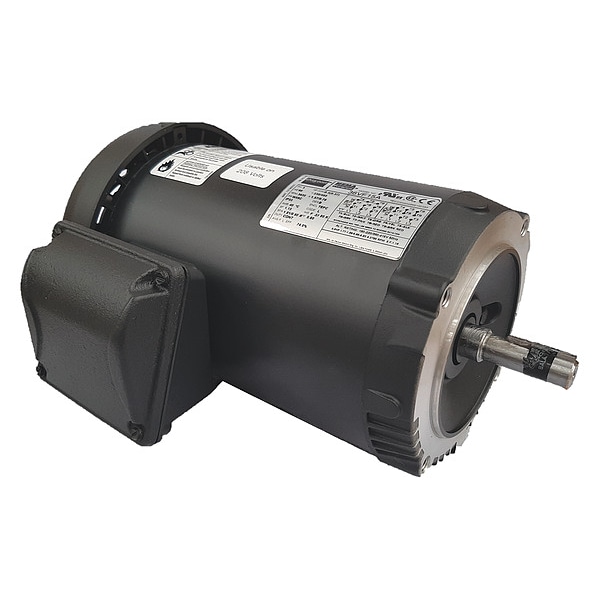

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3530 Nameplate RPM

  • Mfr # 36VF15

  • Zoro # G1860568

product price:  $282.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.4/0.70 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF15
Zoro #
G1860568
UPC #
190735275474
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 7/16 in
Overall Length
12 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.4/0.70 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
73.2 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2, 15, 56
Capacitor Required
No
Duty Cycle
Continuous
Bearing Lubrication Type
Permanently Lubricated
Frame Material
Steel
Variable Torque Rating
10:1
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
Weight
8 9/32 kg
Includes
Shaft Key
Application
General Purpose
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
1.4 / 0.70 A
Conduit Box Location
Exterior
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Shaft Design
Keyed
Bearing Type
Ball
NEMA Design Class
B
Manufacturers Warranty
1 yr
Number of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Protection Type
Shaft Slingers

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3530, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4/0.70 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.2 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
