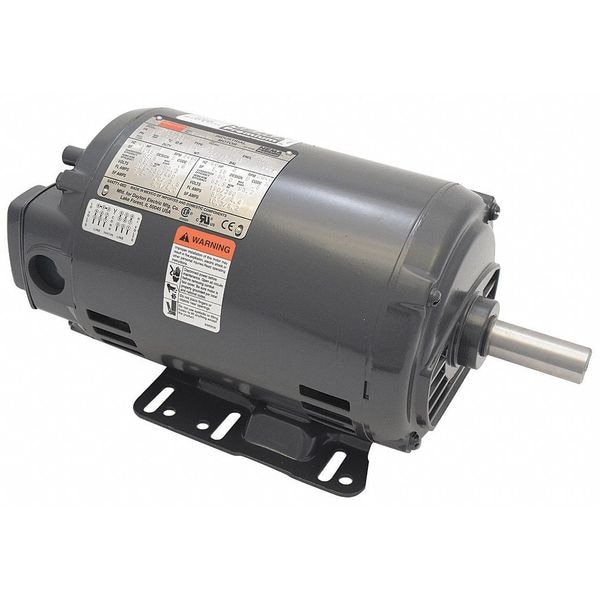

Dayton Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM 53DD29 - main

Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM

  • Mfr # 53DD29

  • Zoro # G1455288

product price:  $557.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3485
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8-7.0/3.5 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
53DD29
Zoro #
G1455288
UPC #
190735905289
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/2 in
Overall Length
14 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Frame Size
143-5T

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3485
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8-7.0/3.5 A
Frame
143/5T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
88 %
Standards
CSA, UL
CC Number
CC030A
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Bearing Type
Ball
Full Load Current @ 60 Hz
7.8-7.0/3.5 A
Application
General Purpose
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Nameplate RPM @ 50 Hz
1,465 RPM
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
380V AC
Number of Speeds
1
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Insulation Class
F
Mounting Position
All Angle
Inverter Rating
Inverter Rated
Frequency
60/50 Hz

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3485, Frame 143/5T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.8-7.0/3.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88 Percent, Continuous Duty, 3001-3600, CSA, UL

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
